- Description
-
Details

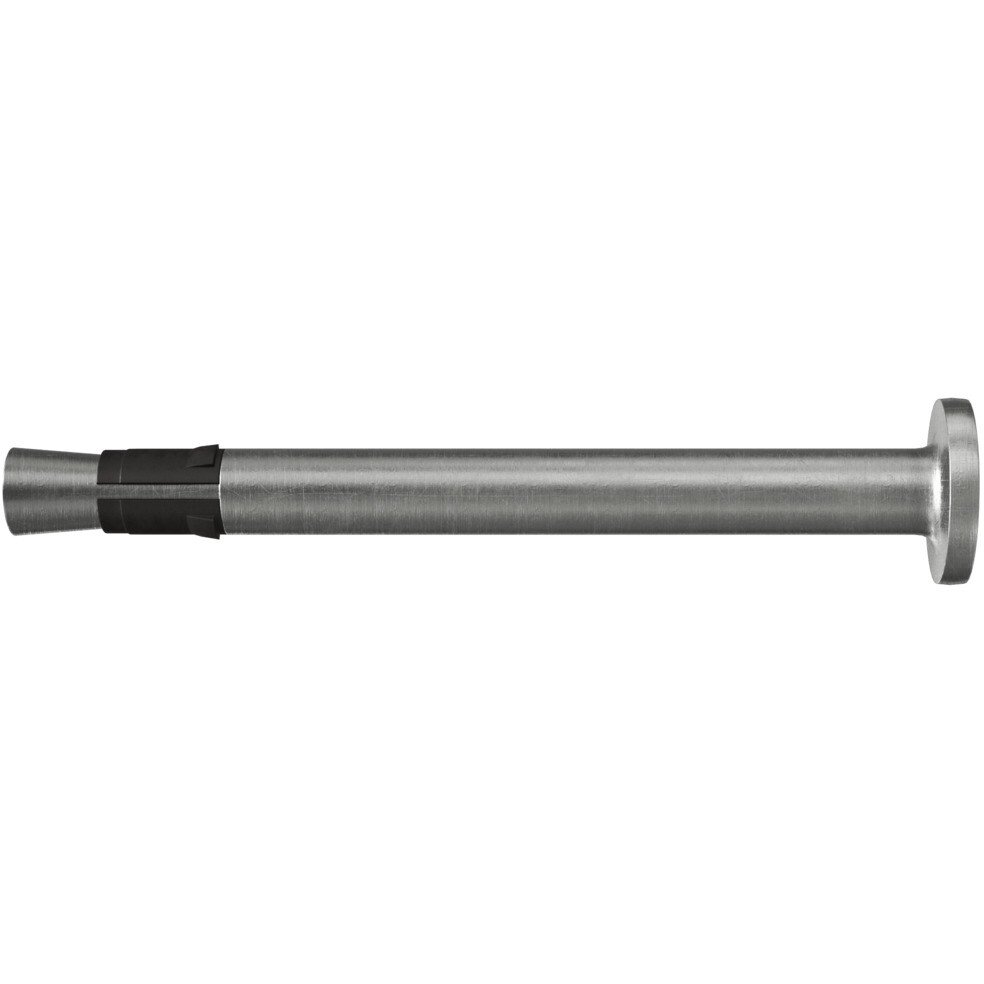

- The fischer nail anchor FNA II RB is a fastening element made of A4 stainless steel for fastening fire protection boards and for multiple fixing of other non-load-bearing systems
- The nail anchor is set in the time-saving through-type installation
- After creating the drill hole, the nail anchor is driven in with a few taps of the hammer, or is set using a compressed air setting device
- The large, pre-assembled washer increases the pulling forces considerably and prevents damaging the board during removal
- The nail head is taken off with special pliers for removal
Top Features
- Easy removal of fire protection plates without damage
- These can be reused
- Secure fixing, even when exposed to vibration, wind, and pushing/pulling effects
- Low anchorage depth saves time and costs
- Simple assembly with hammer or compressed air setting device
- Test certificates from RTW and ZWS
Advantages
- The special active principle allows for a simple hammerset installation and therefore a short processing time
- The extremely short anchor depth prevents reinforcement hits and creates the conditions for a trouble-free installation
- The optimised expansion clip ensures a good hold when the anchor is placed into the drill hole and prevents it from falling out during overhead installations
- The massive shaft cross-section guarantees a high load-bearing capacity, thus offering an extremely high level of safety
Functionality
- The FNA II with nail head is suitable for push-through installation
- The installed nail anchor FNA II expands automatically under load
- The cone is pulled into the expansion clip and expands it against the hole wall
- Available setting tools: FNA S-SBO for attachment to drill
- FNA S-SDS for series installation with a hammer drill FNA S-H for the manual installation of mounting rails
Load Table for Downloading
ETA for Downloading
DOP For Downloading
- Features
Features
Technical Data Drill diameter 6 [mm] Min. drill hole depth for through fixings 66 [mm] Min. drill hole depth for pre-positioned installation 36 [mm] Anchor length 68 [mm] Amount 200 [Unit(s)] Packaging Folding box GTIN (EAN-Code) 4048962205749 Applications Fire protection plates Fire protection boards Ventilation systems Wire and Nonius hangers Mounting rails Metal clamps Substructures made of wood and metal Building materials Approved for: Concrete C12/15 to C50/60, cracked, for multiple fixings of non-structural applications Also suitable for: Solid sand-lime brick Natural stone with dense structure Prestressed hollow-core concrete slabs
