Fischer 524852 Insulation Fixing FID GREEN 90 Pack x 20

More Views

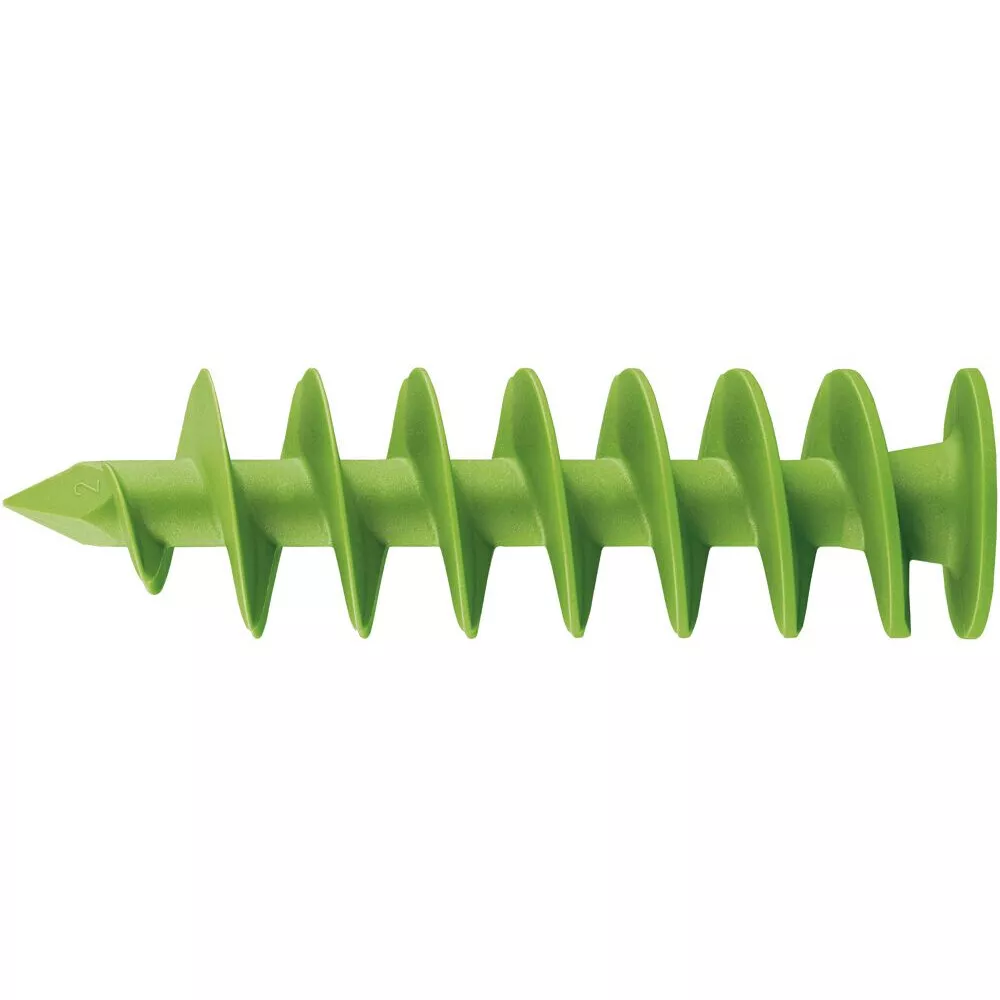

Fischer 524852 Insulation Fixing FID GREEN 90 Pack x 20
Ex. VAT £27.99 Inc. VAT £33.59

Usually ships within 2 working days

At least half of the materials used to create the granules for producing fischer insulation fixing FID Green are gained from sustainable raw materials

Description

Details

  • At least half of the materials used to create the granules for producing fischer insulation fixing FID Green are gained from sustainable raw materials
  • These do not compete with cultivation areas for food and feed products
  • FID Green has the same performance properties and load-carrying properties as the original
  • Lightweight components in plastered and un-plastered insulation panels made of polystyrene and polyurethane are mounted using FID
  • The fischer FID Green can be set either by hand, or with a cordless screwdriver
  • The special spiral thread taps itself in the insulating board

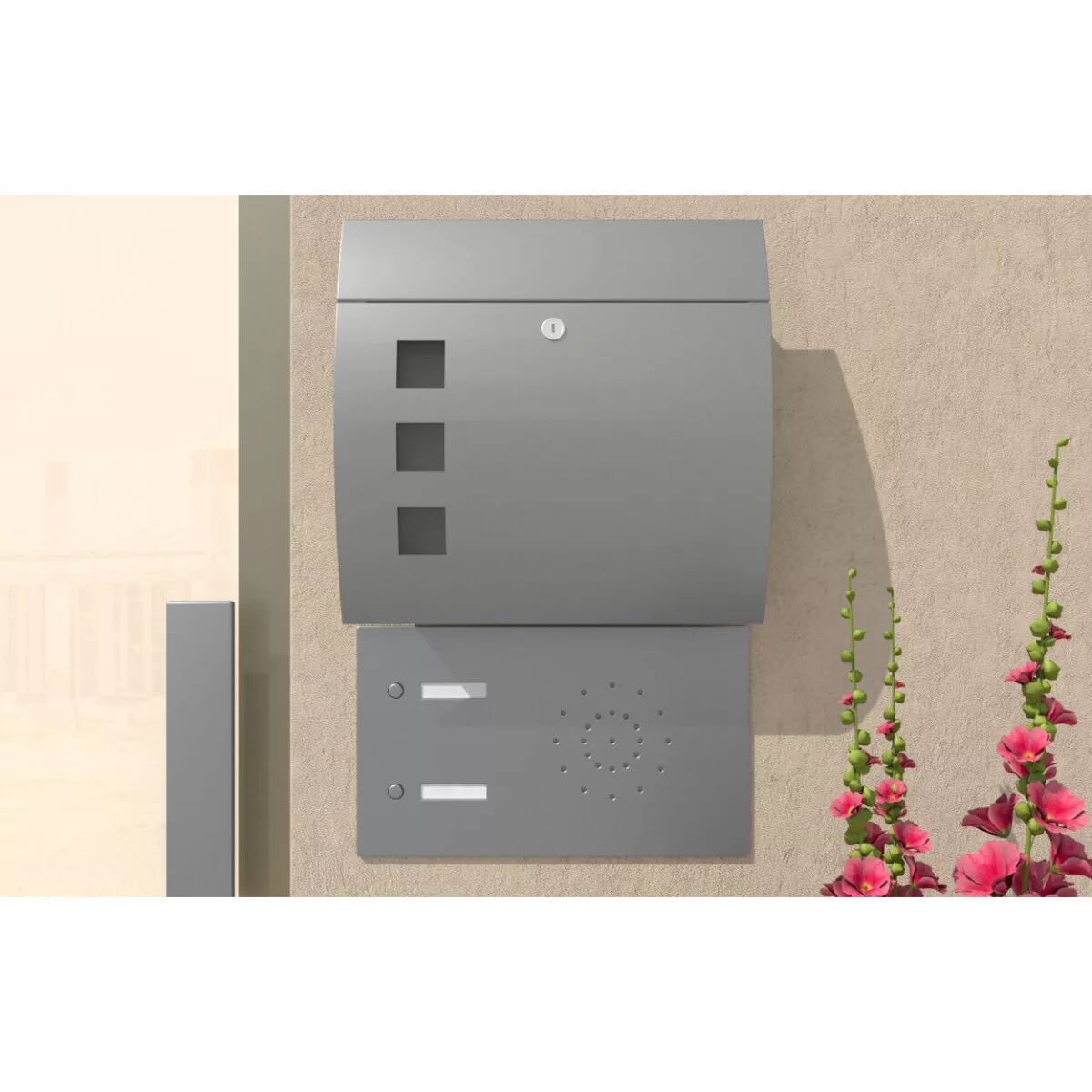

  • Components such as letter boxes, lamps or motion detectors can be mounted using a 4 to 4.5 mm screw

Top Features

  • No pre-drilling necessary in thin layers of plaster
  • This saves time
  • With integrated bit mounting
  • This means that no special setting tool is required
  • This allows for a fast installation
  • Made with renewable raw materials

Advantages

  • Since the anchor is set exclusively in the insulation itself, fixtures can be installed without thermal bridges
  • The geometry of the FID allows for a simple installation in thin layers of plaster, without the need for pre-drilling, thus saving a stage of installation
  • The FID 50 is used in thin insulating boards from 50mm
  • The FID 90 is used in thicker insulating boards, and can bear higher loads
  • The bit mounting allows for setting with standard tools, thus allowing for a fast and economic installation

Functionality

  • The FID can be set in the insulating board with a cordless screwdriver or by hand
  • For thick layers of plaster a pre-drilling (6 mm) is recommended
  • The special spiral thread taps itself in the insulating board
  • Fixtures are fixed with a 4 to 4.5 mm screw for the FID 50
  • Water ingress in the insulation can be prevented by sealing the plug collar with a suitable sealant after successful pre-positioned installation

Load Table

https://fiproductmedia.azureedge.net/media/Load%20Tables/Load%20Tables%20fischer/LT_01_FID_F_SEN_AIP_V1.pdf

Features

Features

Technical Data
Anchor length 90 mm
Wood and chipboard screws 6.0 mm
Drive 6 mm / 6-kt
Max. bolt penetration 80 mm
Contents 20 x Dämmstoffdübel FID Green 90
Amount 20 pcs.
GTIN (EAN-Code) 4048962199765
Applications
To fix lightweight attachments on ETICS facades.
The application areas are ETICS facades made of:
Polystyrene
Mineral wool
Soft wood fibre
Alternative ecological insulation boards
Building materials
Non-plastered, pressure-resistant insulating boards
Plastered, pressure-resistant insulating boards
ETICS insulating boards
