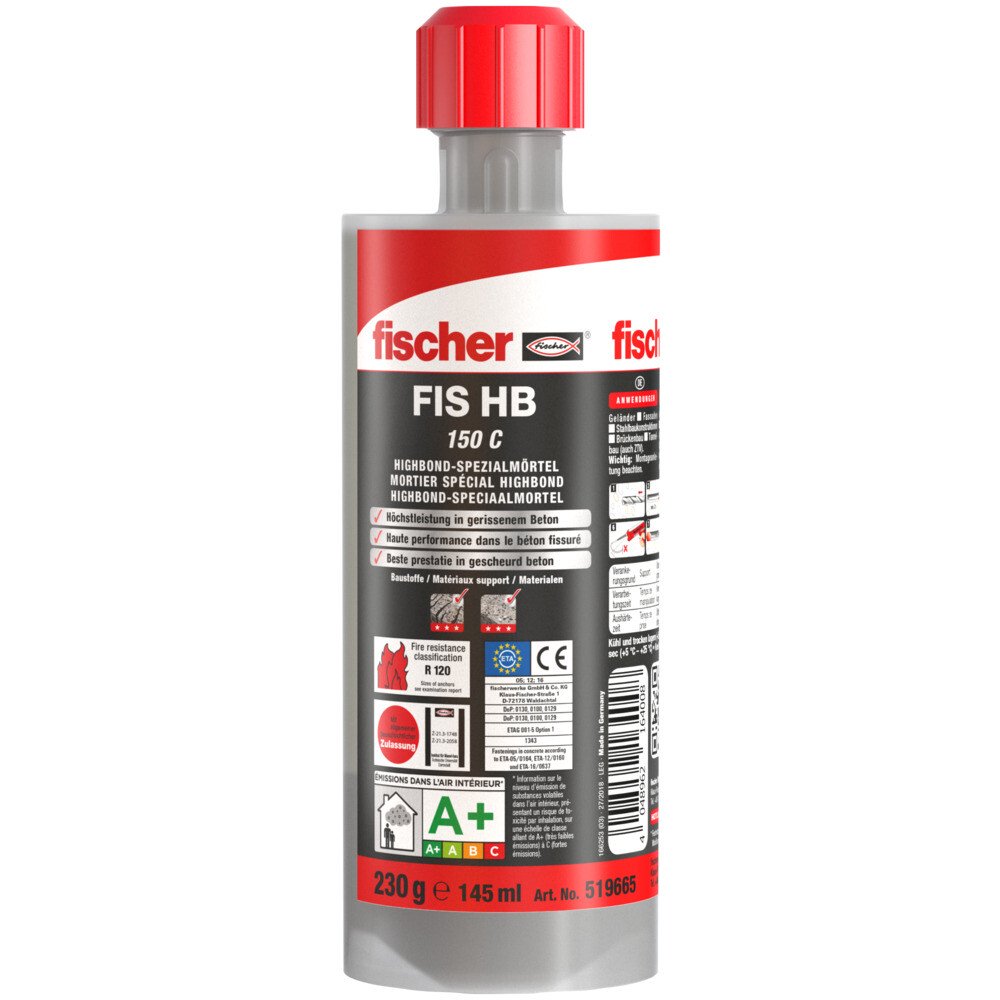

Fischer 519665 Injection Styrene-Free Vinylester Mortar FIS HB 150ml

• The fischer Highbond special mortar FIS HB 150 C is a system component of the fischer Highbond system FHB II for fixing in cracked and non-cracked concrete
• The cartridge contains a styrene-free vinylester mortar that can be processed using a conventional sealant application gun
• The special mortar can be used with the fischer Highbond anchor rods FHB II-A S (standard), Highbond anchor rods FHB II-A L (long) made of zinc-plated steel, made of stainless steel, and made of highly corrosion-resistant steel
• When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall
• Using the fischer Highbond system FHB II means that railings, machines, and steel constructions are securely installed within internal and external areas

Top Features

• Maximum load values in cracked concrete,Thus fewer fixing points are necessary
• Ideal for series installation
• Can be flexibly used for all lengths and diameters of Highbond anchor rods
• This lowers complexity
• ETA approval for cracked concrete
• Application with conventional sealant application gun

Advantages

• The Highbond system FHB II achieves the highest load values in cracked concrete
• This means that fewer fixing points and smaller anchor plates are required
• The injection mortar FIS HB can be worked with the threaded rod FHB II-A S (short version ) or L (long version)
• Thus, you can select the most economical solution based on requirements
• The large container shape of the injection mortar FIS HB is ideally suited to series installation

Functionality

• The injection mortar FIS HB is suitable for pre-positioned and push-through installation
• Resin and hardener are stored in two separate chambers and are only mixed and activated in the static mixer when dispensed through the injection cartridge.
• FIS HB can be used with the threaded rods FHB II-A S and FHB II-A L and glues the threaded rod completely in the drill hole
• When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall
• The styrene-free vinylester mortar fully seals the drill hole
