Fischer 519452 Injection Styrene-Free Vinylester Mortar FIS SB 585S 585ml

• The fischer Superbond mortar FIS SB is a hybrid mortar based on styrene-free vinylester
• Silane technology enables extremely high bond strength and therefore also an extremely high load level
• The Superbond mortar FIS SB can be used with the system components, the anchor rod FIS A, the anchor rod RG M, as well as the reinforced threaded anchor FRA and reinforcement steel
• When using the internal threaded anchor RG M I, the fixing point can be removed when surface-flush

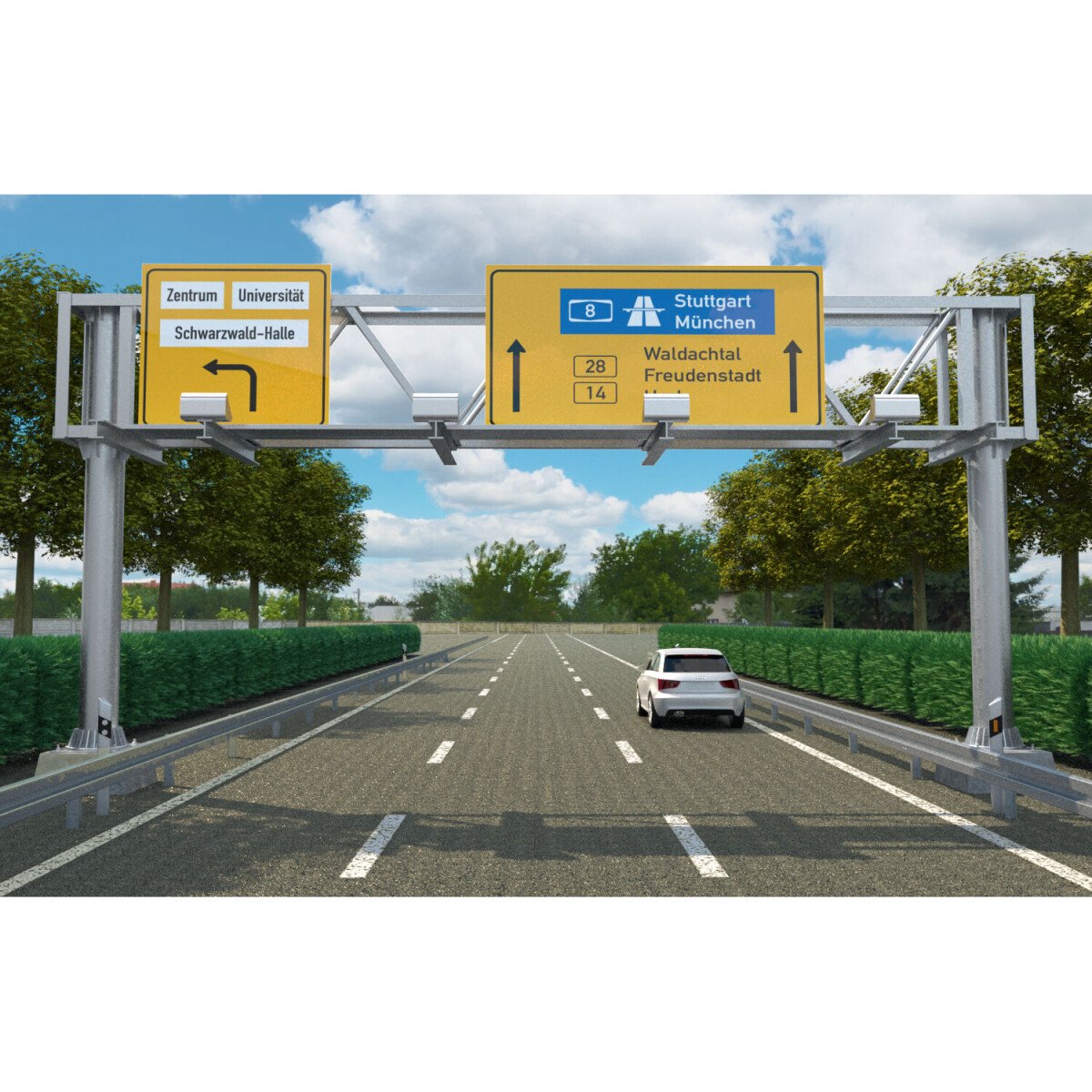

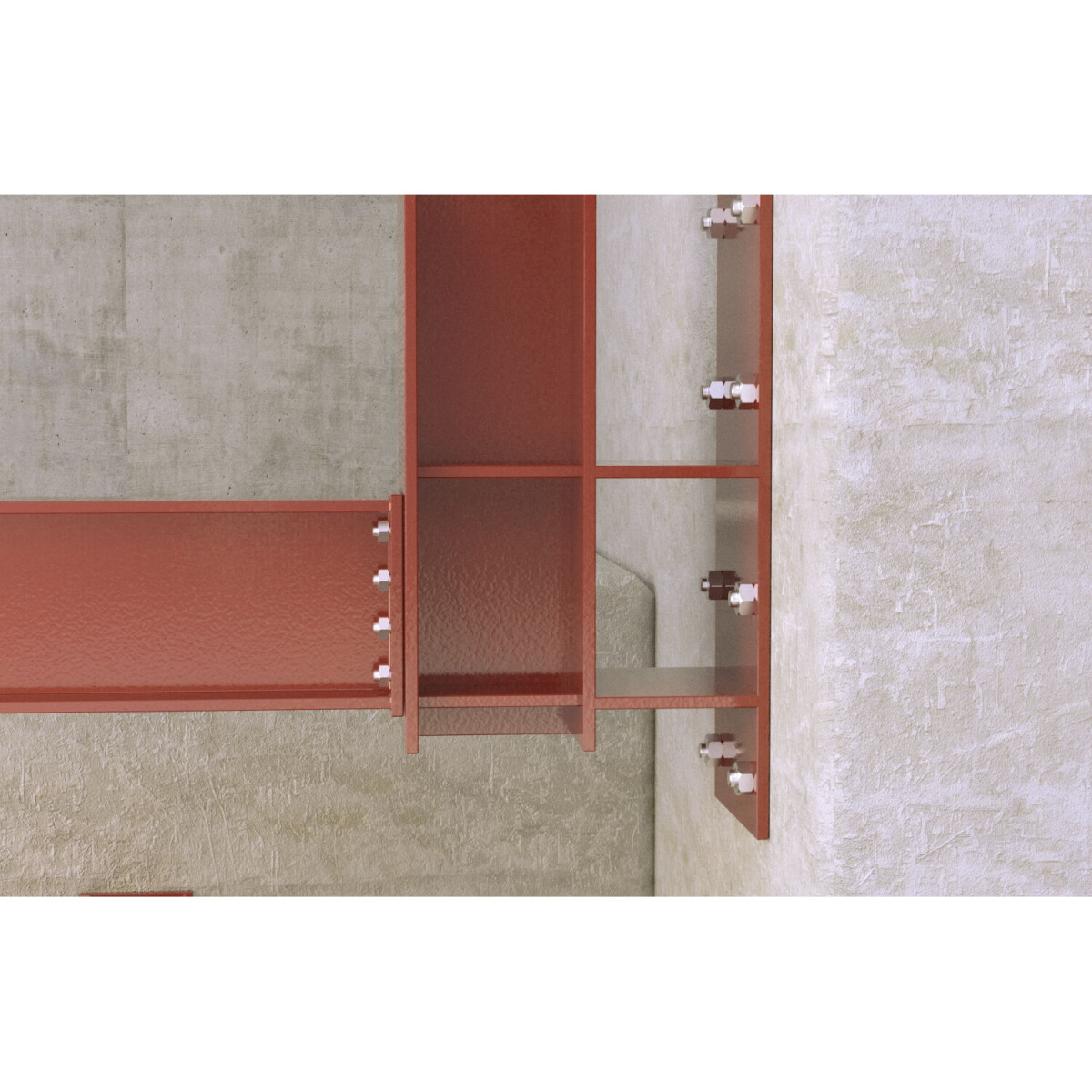

• The fischer Superbond mortar FIS SB is suitable, for example, for fixing system components within internal and external areas such as railings, noise barriers, or heavy steel structures

Top Features

• Extremely high load level in cracked and non-cracked concrete ensures maximum safety
• Variable anchoring depths optimise installation time and materials required
• Installation from -15 °C to 40 °C. ETA approval for cracked concrete and seismic loads

Advantages

• The injection mortar FIS SB achieves a really high load level thanks to its bond strength
• Variable anchorage depths from 4x to 20x the threaded rod diameter enable perfect adaptation in line with the load to be applied, thus ensuring an optimised installation time and use of materials
• Top application temperatures of up to +150°C open up new usage areas for bonded anchors
• The processing of the mortar is even approved down to a chilly –15°C. In combination with the internal threaded anchor RG M I, this product enables surface-flush removal and the reuse of the fixing point
• This provides top flexibility
• The standard threaded rod FIS A can be set for light dynamic loads with the mortar injection system FIS SB in the sizes M12 and M16 in steel grade 8.8 or in the sizes M12, M16, M20 and M24 in stainless steel R and the fischer filling set

Functionality

• The injection mortar FIS SB is based on a vinyl ester hybrid with silane technology
• It is suitable for pre-positioned and push-through installation and can be used with the threaded rod FIS A or the internal threaded anchor RG MI
• Resin and hardener are stored in two separate chambers and are not mixed and activated until dispensed through the injection cartridge
• The mortar is extruded bubble free from the drill hole base
• The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole
• With push-through installations, the annular gap between the threaded rod and fixture is filled with the injection mortar FIS SB
