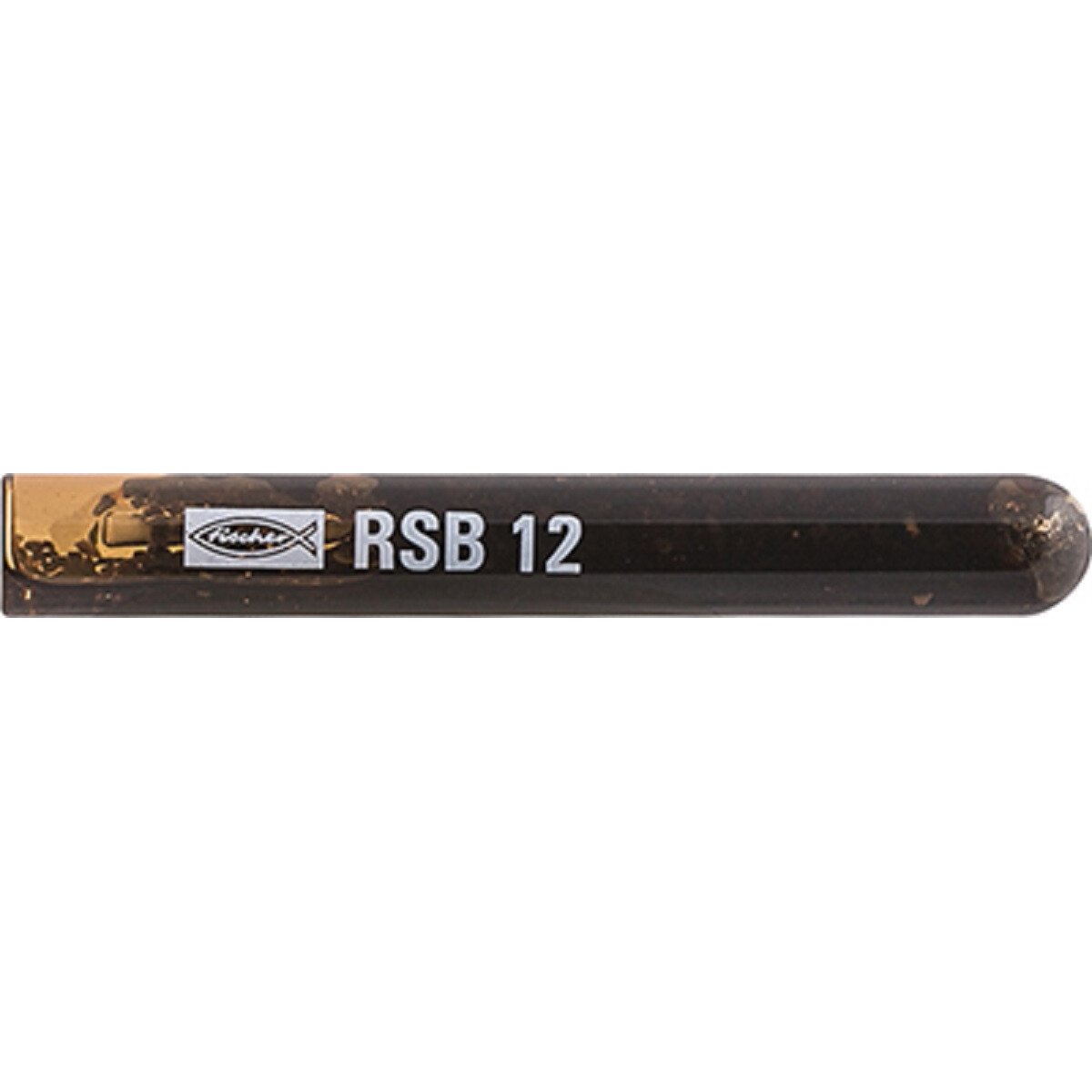

Fischer 518823 Superbond Resin Capsule RSB 12 Pack x 10

• The fischer resin capsule RSB contains a hybrid mortar based on styrene-free vinylester
• The resin capsule is a system component of the fischer Superbond system for fixing in cracked and non-cracked concrete
• The components are fixed using the fischer rod anchor RG M made of zinc-plated steel, made of stainless steel, and made of highly corrosion-resistant steel, as well as the fischer internal threaded anchor RG MI.
• The fischer anchor rod is set with the composite anchor setting tool through rotating and hitting motions using a hammer drill
• The capsule is destroyed during the setting process, which mixes and activates the mortar compound
• With the fischer Superbond resin capsule objects such as heavy-duty steel constructions, soundproof walls, and high racks can be fixed

Top Features

• Cost-effective processing due to pre-portioning
• Processing possible up to -30 ° C.
• Ideal for overhead installation
• Ideal for water-filled drill holes
• Less cleaning work, glass particles in the capsules rough up the drill hole wall

Advantages

• The pre-portioned resin capsule RSB is especially cost-effective for individual applications and overhead installations
• The ideal solution for difficult conditions and installations with no waiting time due to fast hardening
• Approval-compliant processing down to -30°C, also approved for water-filled and diamond-drilled holes as well as for seismic applications in performance category C1 (only in conjunction with RG M)
• For each diameter, up to three anchorage depths can be realised with the threaded rod RG M through a combination of the resin capsules RSB mini.
• The use of the internal threaded anchor RG M I enables the surface-flush removal of the fixture and the reuse of the fixing point

Functionality

• The 2-component resin capsules RSB and RSB mini contain vinyl ester hybrid mortar with silane technology
• They are suitable for pre-positioned installation
• During setting, the oblique edge of the anchoring element destroys the capsule, and mixes and activates the mortar
• The glass particles of the capsule body roughen the inside of the drill hole, which reduces the cleaning effort to just four blowing passes
• The mortar bonds the entire surface of the anchor rod with the drill hole wall and seals the drill hole.

Technical Data Download

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_rsb-rgm-i_f_%23sen_%23aip_%23v1.pdf
