Fischer 514236 Remedial Wall Tie VBS-M 8mm x 120mm R gvz Pack x 100

More Views

Fischer 514236 Remedial Wall Tie VBS-M 8mm x 120mm R gvz Pack x 100
Ex. VAT £437.00 Inc. VAT £524.40

Usually ships within 10 working days with Free Shipping

The quick remedial wall tie improvement for double shell masonry

Description

Details

  • The fischer remedial wall tie VBS-M is a mechanical system for retrospective building authority-approved fixing of facing masonry with and without an air layer
  • The system consists of a plastic sleeve with a two-way expansion zone and a screw made of zinc-plated steel
  • The VBS-M is set in the load-bearing layer and into facing masonry using time-saving push-through installation
  • The two expansion zones in the fixing create a secure attachment in the supporting formwork and the facing formwork
  • The fixing is only fixed in the economy facing when it grips in the facing masonry
  • Above all, the fischer remedial wall tie VBS-M is suitable for quick remedial wall tie improvement of double shell masonry to which a composite thermal insulation system has been retroactively applied

Top Features

  • High flexibility due to approved fixing in joints and in facing masonry
  • Cost-effective installation due to low anchorage depth
  • Recessed or surface flush installation is possible via a small rim and a small screw head. Invisible assembly due to jointing of the drill hole
  • No frost and corrosion damage due to a drip coil

Advantages

  • The approved fixing in stone and in joints from at least 50 mm facing masonry provides a high degree of flexibility and security
  • Use in joints and with a low anchorage depth of just 50 mm allows for a quick and economical installation
  • The small anchor rim and screw head allow for a surface-flush or deep-set installation
  • The drill hole can be retrospectively sealed so that it is no longer visible in the façade
  • A drip coil prevents condensate running into the load-bearing layer, thus preventing frost and corrosive damage

Functionality

  • The remedial wall tie VBS-M is set in the load-bearing layer and into facing masonry using push-through installation
  • In accordance with the approval, no drill hole cleaning is required
  • The two expansion zones in the load-bearing layer and in the facing masonry ensure a secure fixation
  • The plug doesn't fix into the facing masonry until the head grips into the load-bearing layer
  • This ensures the very best installation safety

Approvals DOP Instructions For Downloading

https://fiproductmedia.azureedge.net/media/Certification%20Documents/DOP%20Documents/fischer/ZD_DOP_VBS-M_F_SEN_AIP_V1.pdf

Features

Features

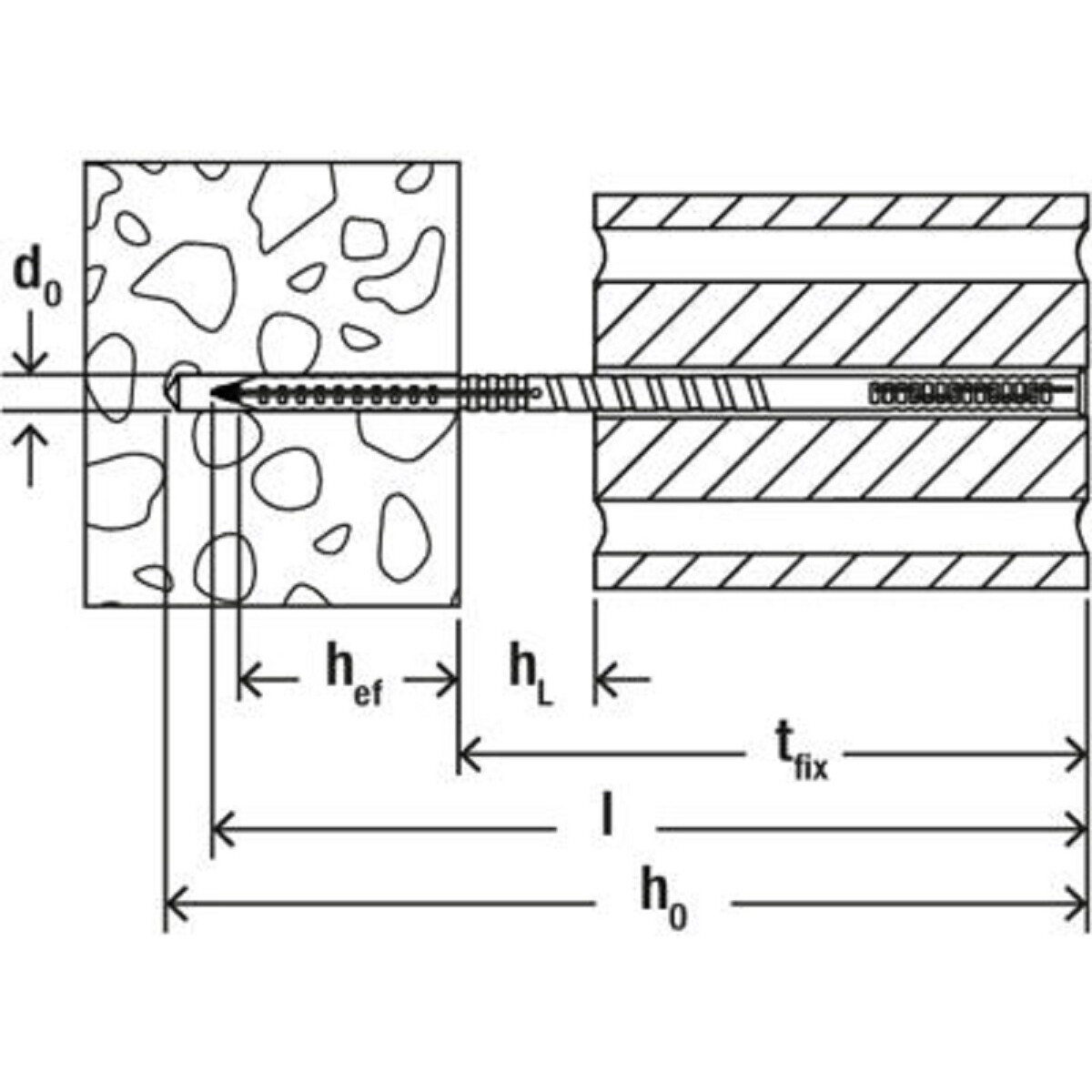

Technical Data
Max. shell distance at 115 mm facing masonry, flush installation 20 mm
Facing masonry + cavity 70 mm
Drill diameter 8 mm
Drill hole depth 140 mm
Anchor length 120 mm
Effect. anchoring depth > 50 mm
Packaging Folding box
Amount 100 pcs.
GTIN (EAN-Code) 4048962131574
Applications
VBS-M is especially suitable for applications where external thermal insulation composite systems (ETICS) have been previously installed.
Retrorespective repair of facing masonry.
Building materials
Facing masonry with and without an air layer
