- Description
-
Details
- Drill hole diameter d0 12 [mm]
- Min. drill hole depth for through fixings h2 135 [mm]
- Anchor length l 146 [mm]
- Max. usable length hef,max./hef,min. tfix 50/65 [mm]
- Thread Ø x length M 12 x 99 [mm]
- Width across nut SW 19 [mm]

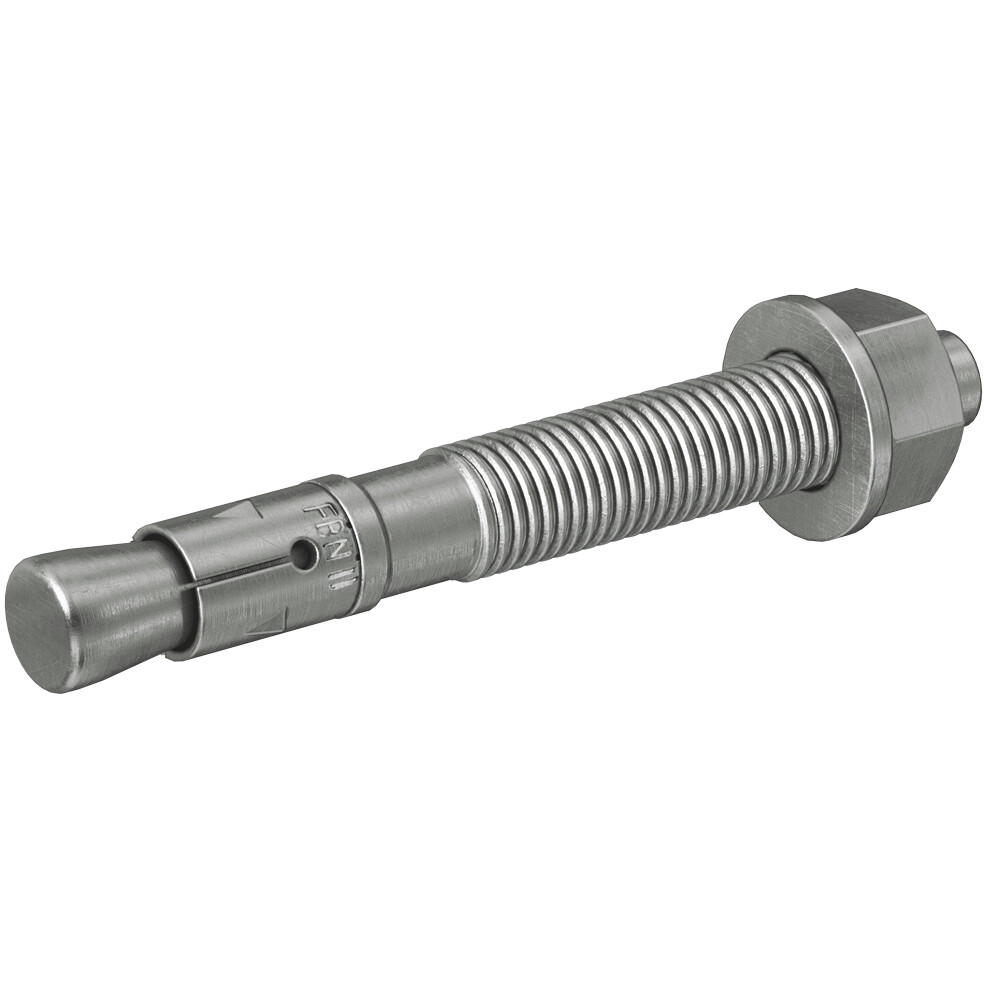

- The Fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete
- Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner.
- The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation
- The stainless steel version of the bolt anchor is suitable for fixing façade sub-structures, consoles, and ladders in external area
- The FBN II achieves maximum load-bearing capacity with standard anchorage depth.
- This means: fewer fixing points and smaller anchor plates
- If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation
- Component tolerances are balanced out with the long thread.
- In addition, FBN II is also suitable for stand-off installations
- This increases flexibility.
- Simple assembly due to few taps and minimal slippage
- Stainless steel: permanent safety in outdoor use.
- Features
Features
Applications Steel constructions Guard rails Consoles Ladders Cable trays Machines Staircases Gates Façades Building materials Approved for: Concrete C20/25 to C50/60, non-cracked Also suitable for: Concrete C12/15 Natural stone with dense structure Permission ETA-07/0211 DoP No. 0015 DoP No. 0756-CPD-0296 ETA-approval Drill hole diameter d0 12 [mm] Min. drill hole depth for through fixings h2 135 [mm] Anchor length l 146 [mm] Max. usable length hef,max./hef,min. tfix 50/65 [mm] Thread Ø x length M 12 x 99 [mm] Width across nut SW 19 [mm] Amount 20 Unit(s)
