Fischer 505942 FIS-Rebar Kit in Case

Fischer 505942 FIS-Rebar Kit in Case

• Anchoring as with cast-in reinforcement bars in line with Eurocode 2 and DIN 1045-1.
• The mortar is extruded bubble free into the drill hole using the injection adapter. The geometry causes a build-up of pressure in the drill hole, which pushes the injection adapter and extension tube automatically out of the drill hole.
• The mortar bonds the entire surface of the reinforcement bar with the drill hole wall.

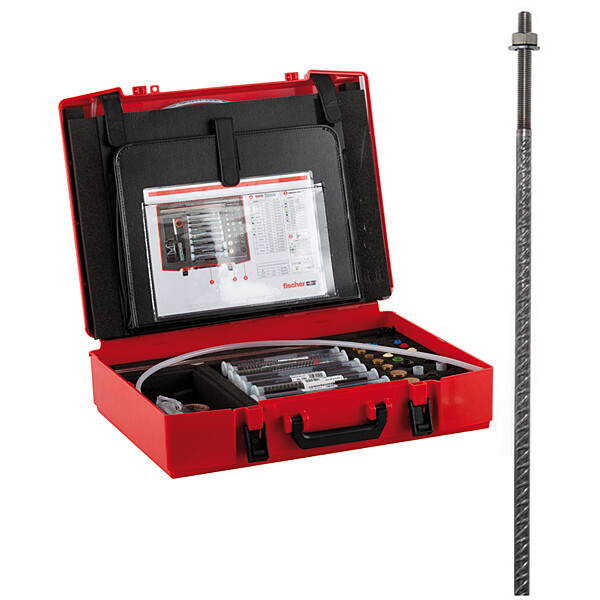

• The Fischer FIS rebar case contains the accessories, approvals, and documentation required for the creation of approval-compliant rebar connections
• The box is lined with foam and contains eight cleaning brushes with a diameter of 12 - 55 mm, five extensions for cleaning brushes, an SDS socket with M8 internal thread, 24 injection adapters, a cleaning tube, a brush control cartridge, eight cleaning nozzles, a marking tape, a digital thermometer, safety goggles, installation instructions, 10 setting protocols, two flat spanners, and the corresponding approvals
• The FIS rebar case contains all of the individual components required for the creation of rebar connections, thus ensuring an easy installation
• The components are used with the injection mortars FIS SB, FIS EM Plus, or FIS V depending on requirements.
• With the injection mortars FIS V and FIS VS LOW SPEED, the rebar connections can be realised with a diameter of 8 to 28 mm, and with FIS EM a diameter of up to 40 mm can be achieved if required
• This offers maximum flexibility.
• The injection mortar FIS SB allows the user to realise rebar connections with a diameter of 8 to 32 mm in conjunction with easy and therefore user-friendly drill hole cleaning.
• FIS EM Plus also allows for the execution of rebar connections in diamond-drilled holes
• Contents:8 x Cleaning brush BSB,5 x Extensions for cleaning brushes à 40 cm,1 x SDS Chuck with internal thread M 8, 24 x Injection adapter,1 x Cleaning hose complete, 1 x Brush control template, 8 x Cleaning nozzle,1 x Marker tape, 1 x Digital thermometer, 1 x Protective goggles,1 x Installation instructions (german, english, french, italian, spanish),10 x Installation report, 2 x Flat spanner SW 7 and the relevant approvals
