- Description
-
Details

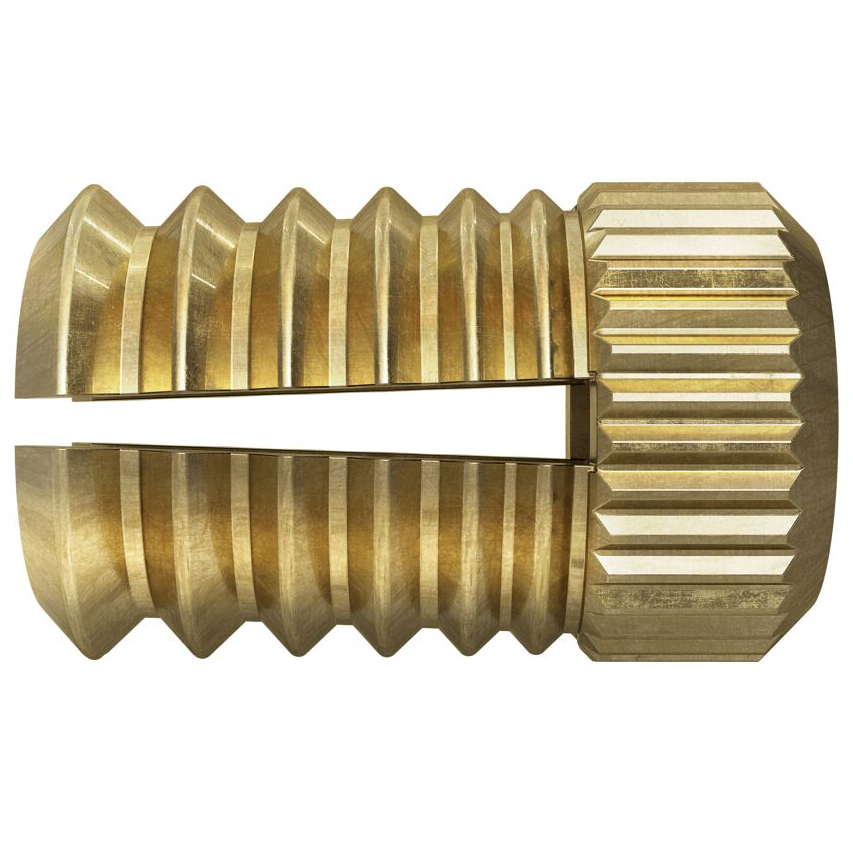

- The fischer brass fixing PA 4 is a special fixing for fastening metric screws in thin panel building materials
- The brass fixing is set in the pre-positioned installation
- When driving in the screw, the plug expands and anchors itself in the building material
- The fischer brass fixing PA 4 is ideal for fixing handles, angle brackets, or lamps in wood panel materials, plastic boards, and also in concrete, solid brick, and solid sand-lime brick
Top Features
- Ideal for thin panel building materials due to low anchorage depths
- No rotation due to special surface structure
- High flexibility due to using conventional metric screws
Advantages
- The short brass fixing PA 4 only requires a very low anchorage depth and is therefore the solution for thin board building materials
- The special surface structure of the PA 4 prevents the fixing from rotating in the drill hole
- This provides increased installation safety
- The internal thread allows for the use of standard metric screws and enables the ideal adaptation to suit the intended use
Functionality
- The PA 4 is suitable for pre-positioned installation
- Turning in the metric screw causes the front part of the brass fixing to expand, thus securely anchoring it in the substrate
- Calculating screw length for flush fixing installation: Fixing length + fixture thickness = min. screw length
Load Table
- Features
Features
Technical Data Drill diameter d0 8 [mm] Min. drill hole depth h1 13.5 [mm] Thread M M6 Bolt penetration s 13.5 [mm] Effect. anchorage depth hef 13.5 [mm] Packaging Folding box Amount 100 [pcs.] GTIN (EAN-Code) 4006209594841 Applications Handles Angle brackets Furniture fittings Lamps Building materials Wooden board building materials Plastic boards Concrete Solid brick Solid sand-lime brick Natural stone with dense structure
