Details

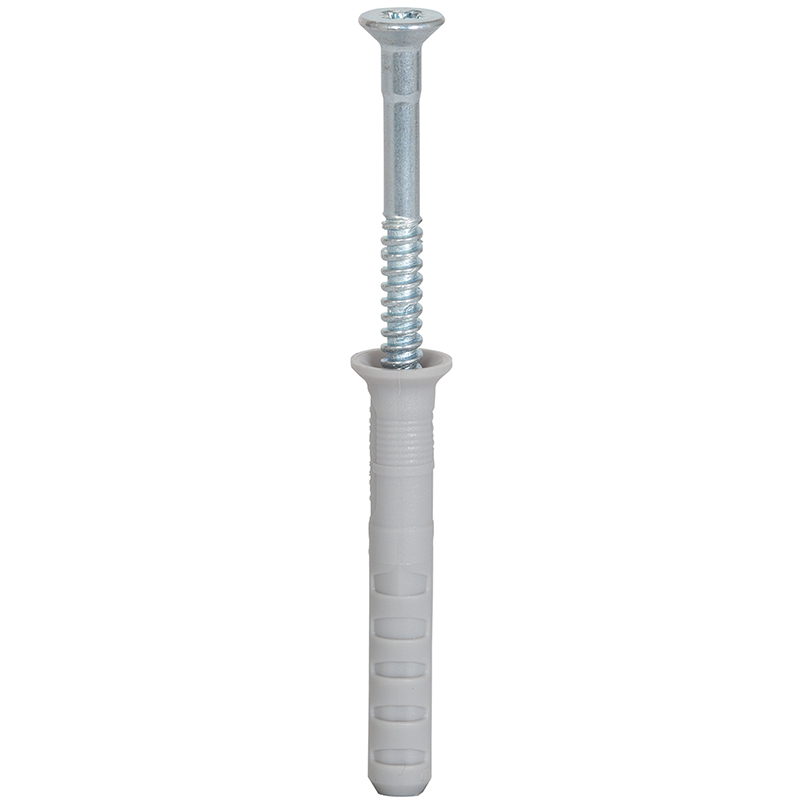

The Hammer-in Plug For A Simple Fast And Economical Installation
- The rapid hammerset installation reduces the amount of time required and allows for an economic series installation
- The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation
- Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling
- The wide range of diameters, usage lengths and head shapes provides the correct plug for every fixing
- When hammered in,the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material
- Suitable for push-through installation
For Building Materials
- Concrete
- Solid sand-lime brick
- Building brick
- Natural stone
- Solid brick made from lightweight concrete
- Aerated concrete
- Solid panel made from gypsum
- Vertically perforated brick
- Hollow blocks made from lightweight concrete
- Features
Features
Drill hole diameter d0 8 [mm] Effect. anchorage depth hef 40 [mm] Anchor length l 80 [mm] Min. drill hole depth for through fixings h2 95 [mm] Max. fixture thickness t fix 40 [mm] Drive PZ3
