Fischer 502999 Frame Fixing SXR 8 x 60 T With Safety Screw GVZ Pack x 50

Fischer 502999 Frame Fixing SXR 8 x 60 T With Safety Screw GVZ Pack x 50
Ex. VAT £15.99 Inc. VAT £19.19

Usually ships within 2 working days

Cost-effective fixing due to low anchorage depth

Description

Details

Top Features

  • Cost-effective fixing due to low anchorage depth
  • Plug expands in solid building materials

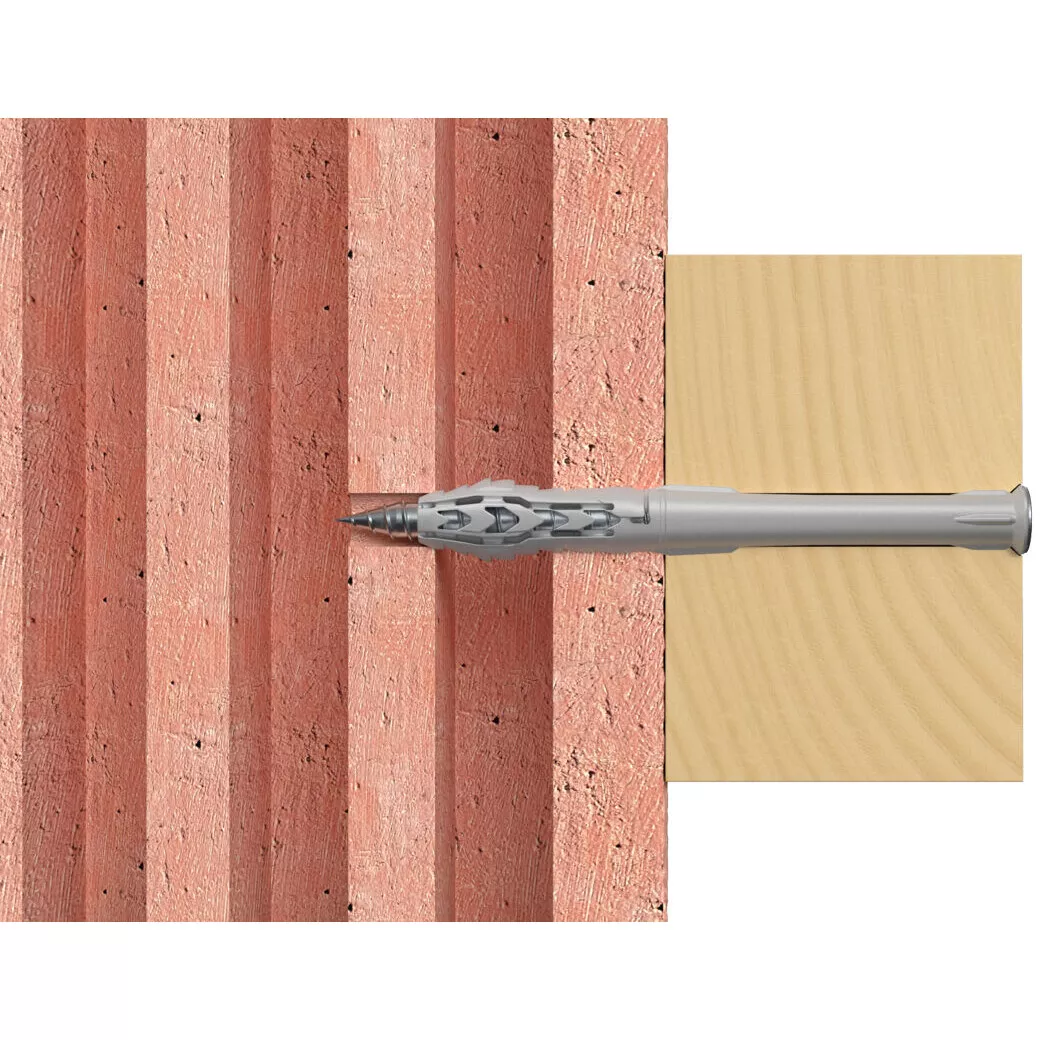

  • The plug anchors itself in the cavity in perforated building materials
  • Screw with cross-slot recess
  • With safety screw with countersunk head.

Advantages

  • The special functioning allows for use in solid and hollow building materials with an anchorage depth of just 30 mm, thus ensuring an economic fixing

Functionality

  • The SXR is suitable for push-through installation

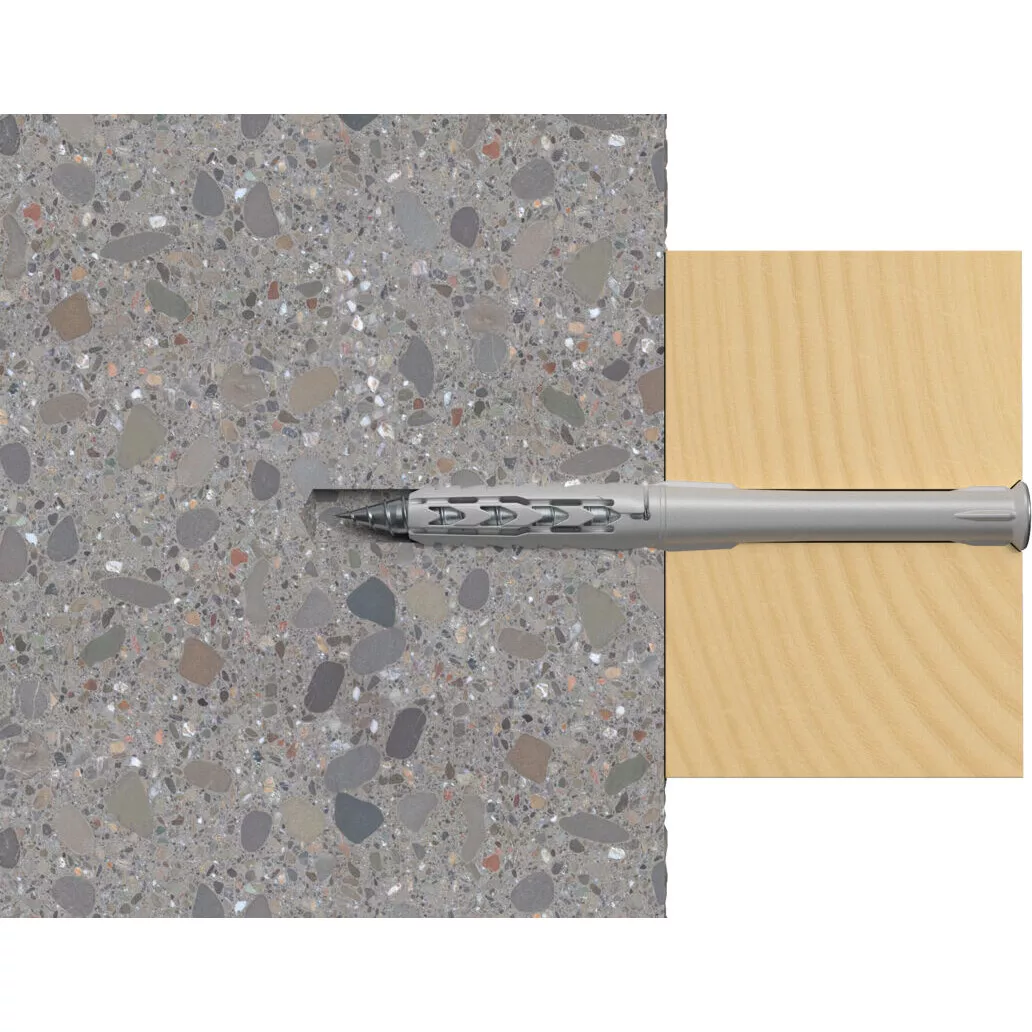

  • The SXR expands in solid building materials
  • In perforated building materials, the loads are transferred in the block fillet area
  • With vertically perforated bricks, only use rotary drilling (no impact drilling)
  • Recommended for the fixing of wood constructions

Load Table

https://fiproductmedia.azureedge.net/media/Load%20Tables/Load%20Tables%20fischer/LT_01_SXR-T1_SEN_AIP_V1.pdf

Features

Features

ETA-approval
Drill diameter 8 mm
Min. drill hole depth for through fixings 70 mm
Anchor length 60 mm
Max. fixture thickness 10 mm
Drive TX30
Packaging Folding box
Amount 50 pcs.
GTIN (EAN-Code) 4048962016277
Applications
Timber sub-structures
Blinds / folding shutters
Handrails
Wardrobes
Shelves
Lighting
Motion detectors

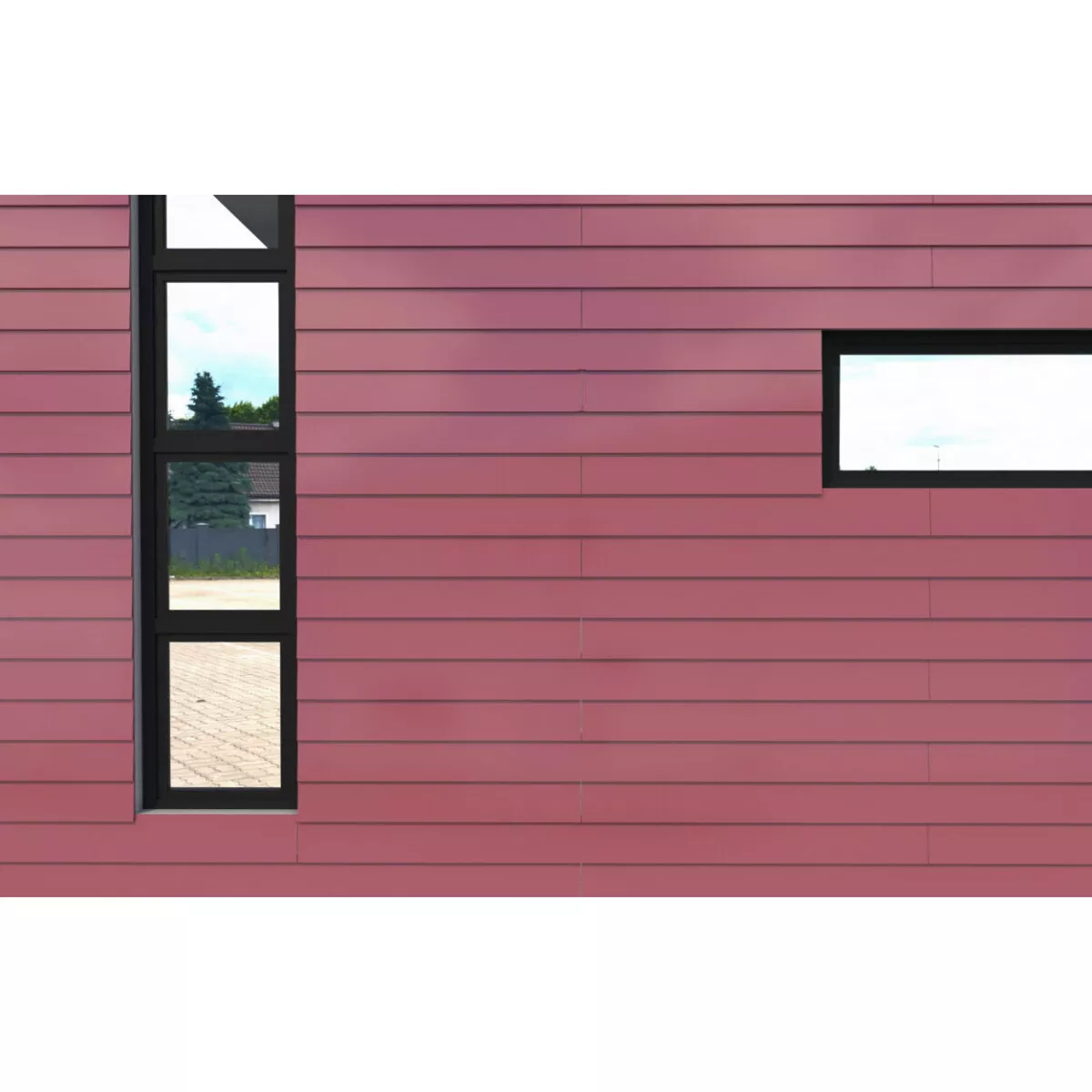

Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays
Building materials
Suitable for:
Vertically perforated brick
Aerated concrete
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Thermal insulation blocks
Solid block made from lightweight and normal weight concrete
Solid brick
Solid sand-lime brick
Concrete ≥ C12/15
Natural stone with dense structure
Solid panel made from gypsum
