- Description
-
Details

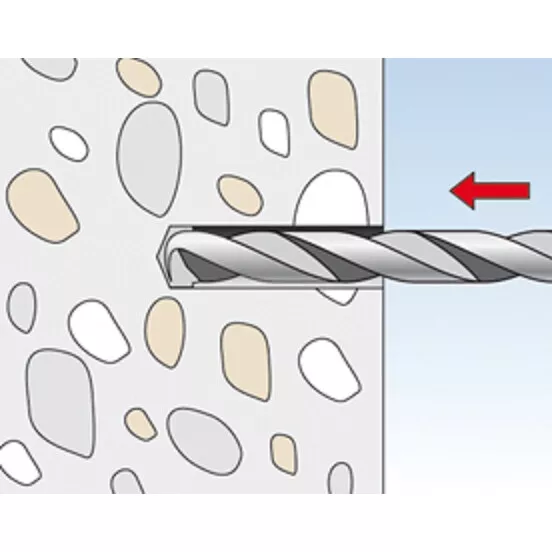

- Drill hole diameter d0 18 [mm]
- Hexagon drive 6kt SW 12 [mm]

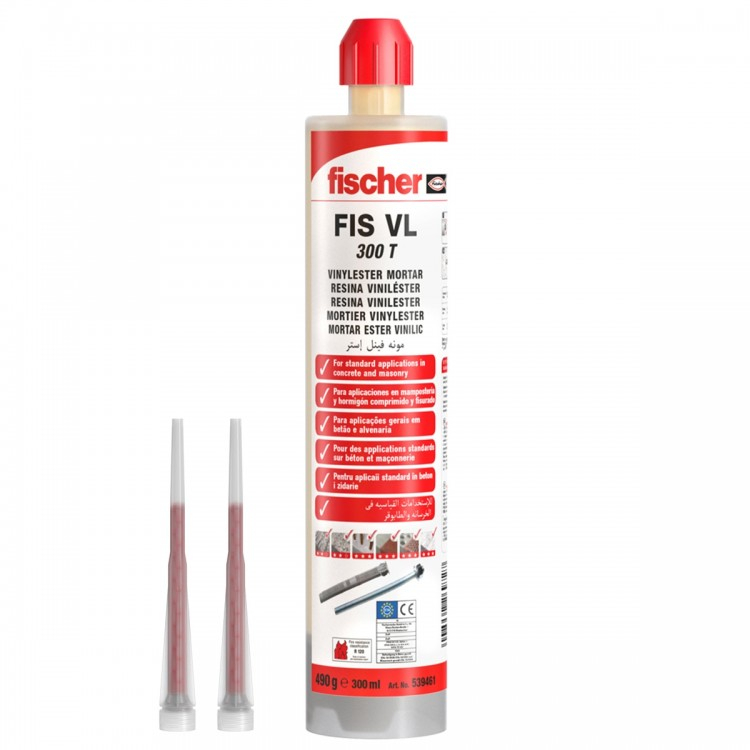

- The Fischer anchor rod RG M is a system component for use with the fischer resin capsules RSB and RM II and the fischer injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN
- Due to the oblique edge, it is particularly suitable for use with the resin capsules RSB and RM II
- The extensive assortment in diameters M8 - M30 and in different steel grades enables extremely diverse applications
- The system is particularly suitable for the cost-effective fixation of railings, steelwork constructions, and advertising systems both inside and outside
- The RG M is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions
- During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated
- The approvals of the various resin capsules and injection mortars must be observed
Top Features
- Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various mortar cartridges or injection mortars
- Anchor rod with oblique edge and hexagon for simple installation with pre-portioned injection cartridge
- Zinc-galvanised steel for internal use.
Production Description
- The Fischer rod anchor RG M is made of zinc-plated steel with a grade of 5.8
- The anchor rod is a systems accessory for various fischer mortar cartridges or injection mortars
- Application with pre-portioned mortar cartridges is especially cost-effective for individual fixings
- During mounting with the resin capsule, set the fischer anchor rod RG M through rotating and hitting motions with a hammer drill
- The capsule is destroyed during the setting process, which mixes and activates the mortar compound
- During mounting with injection mortars, the anchor rod is pushed into the drill hole manually by lightly rotating it
- The system is particularly suitable for cost-effective fixing of machines, steelwork constructions, and supporting feet in internal areas
Advantages
- The wide range of the RG M from M8 to M30 opens up a wide range of applications and therefore offers great flexibility.
- The wide range of approved steel types for RG M allows for use in all corrosion resistance classes and offers the best possible application safety
- .Please refer to the approvals for the resin capsules and mortar used.
Functionalty
- Due to its oblique edge, the threaded rod RG M is particularly suitable for use in conjunction with resin capsules

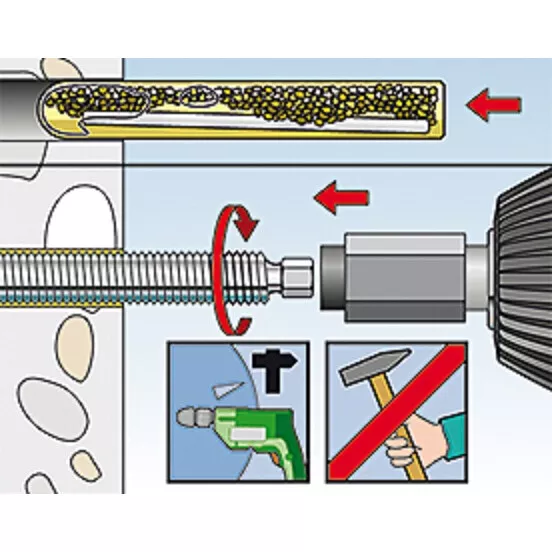

- The threaded rod RG M is set using a hammer drill and the accompanying setting tool in rotating and hitting motions
- During setting, the oblique edge of the RG M destroys the capsule, and mixes and activates the mortar.
- Use with injection mortar is also possible. Here, the threaded rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.
- Features
Features
ETA-approval Drill hole diameter d0 18 [mm] Hexagon drive 6kt SW 12 [mm] Hexagon nut SW 24 [mm] Amount 10 Unit(s) Applications Approved anchorings with Resin capsules RSB and RM II Approved anchorings with Injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS GREEN and FIS P Plus Building materials In connection with the fischer resin capsules approved or suitable for cracked and non-cracked concrete. In connection with several fischer injection mortars approved or suitable for different building materials. You can find detailed information on building materials in the registration document. Permission ETA-02/0024 DoP No. 0007 DoP No. 0072 DoP No. 0094 DoP No. 0094 - EN DoP No. 0756-CPD-0300 DoP No. 0756-CPD-0301 DoP No. 0756-CPD-0490
