- Description
-
Details
- The Fischer anchor rod RG M is a system component for use with the fischer resin capsules RSB and RM II and the fischer injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN
- Due to the oblique edge, it is particularly suitable for use with the resin capsules RSB and RM II
- The extensive assortment in diameters M8 - M30 and in different steel grades enables extremely diverse applications
- The system is particularly suitable for the cost-effective fixation of railings, steelwork constructions, and advertising systems both inside and outside
- The RG M is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions
- During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated
- The approvals of the various resin capsules and injection mortars must be observed
Top Features
- Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various mortar cartridges or injection mortars
- Anchor rod with oblique edge and hexagon for simple installation with pre-portioned injection cartridge
- Zinc-galvanised steel for internal use.
Production Description

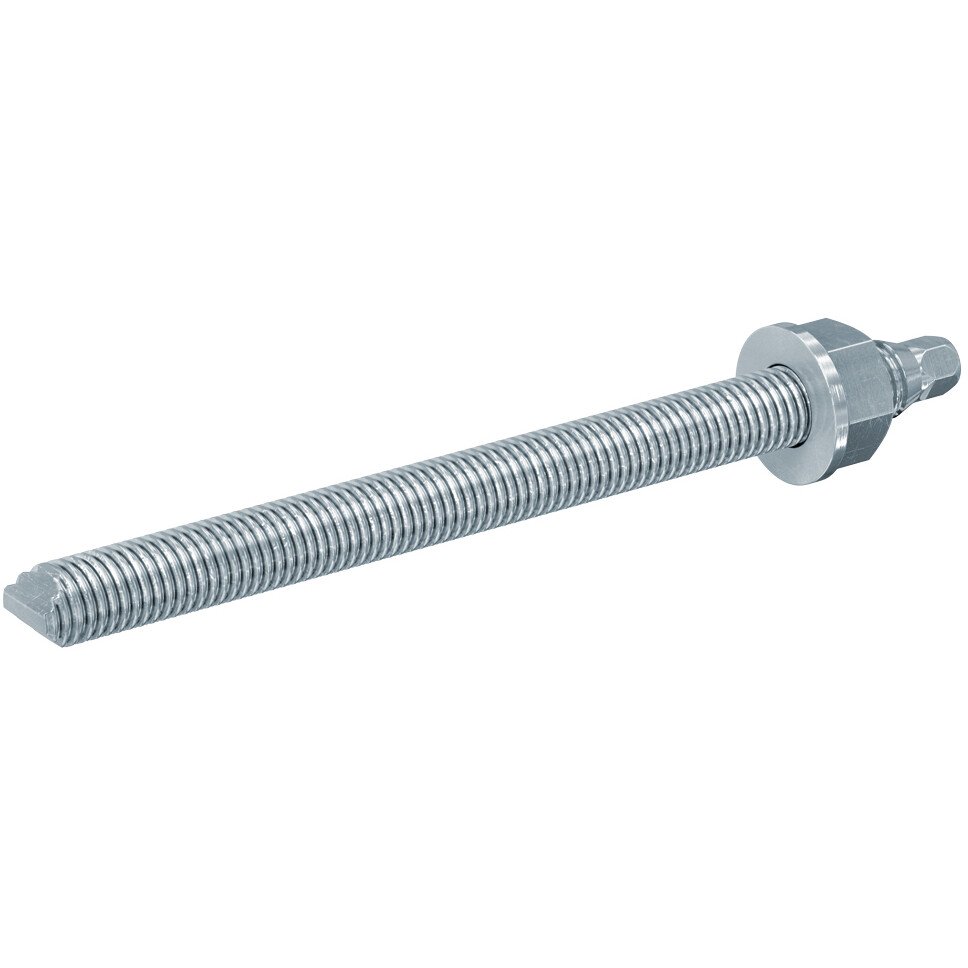

- The Fischer rod anchor RG M is made of zinc-plated steel with a grade of 5.8
- The anchor rod is a systems accessory for various fischer mortar cartridges or injection mortars
- Application with pre-portioned mortar cartridges is especially cost-effective for individual fixings

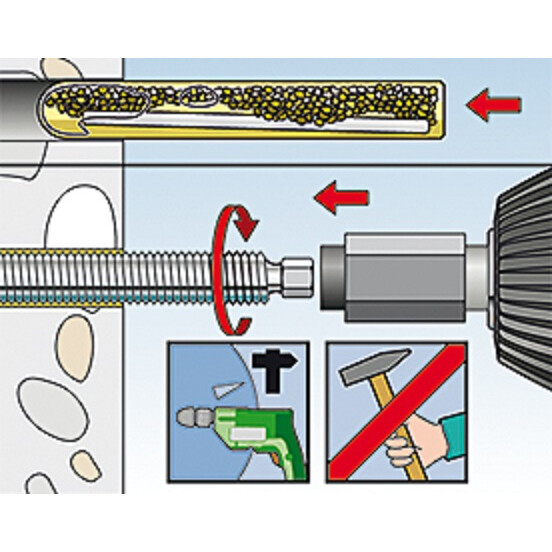

- During mounting with the resin capsule, set the fischer anchor rod RG M through rotating and hitting motions with a hammer drill
- The capsule is destroyed during the setting process, which mixes and activates the mortar compound
- During mounting with injection mortars, the anchor rod is pushed into the drill hole manually by lightly rotating it
- The system is particularly suitable for cost-effective fixing of machines, steelwork constructions, and supporting feet in internal areas
Advantages
- The wide range of the RG M from M8 to M30 opens up a wide range of applications and therefore offers great flexibility.
- The wide range of approved steel types for RG M allows for use in all corrosion resistance classes and offers the best possible application safety
- .Please refer to the approvals for the resin capsules and mortar used.
Functionalty
- Due to its oblique edge, the threaded rod RG M is particularly suitable for use in conjunction with resin capsules
- The threaded rod RG M is set using a hammer drill and the accompanying setting tool in rotating and hitting motions
- During setting, the oblique edge of the RG M destroys the capsule, and mixes and activates the mortar.
- Use with injection mortar is also possible. Here, the threaded rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.
- Features
Features
ETA-approval Drill diameter 12 mm Thread M10 Packaging Folding box Amount 10 pcs. GTIN (EAN-Code) 4048962237177 Applications Approved anchorings with Resin capsules RSB and RM II Approved anchorings with Injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS GREEN and FIS P Plus Building materials In connection with the fischer resin capsules approved or suitable for cracked and non-cracked concrete. In connection with several fischer injection mortars approved or suitable for different building materials. You can find detailed information on building materials in the registration document. Permission ETA-02/0024 DoP No. 0007 DoP No. 0072 DoP No. 0094 DoP No. 0094 - EN DoP No. 0756-CPD-0300 DoP No. 0756-CPD-0301 DoP No. 0756-CPD-0490
