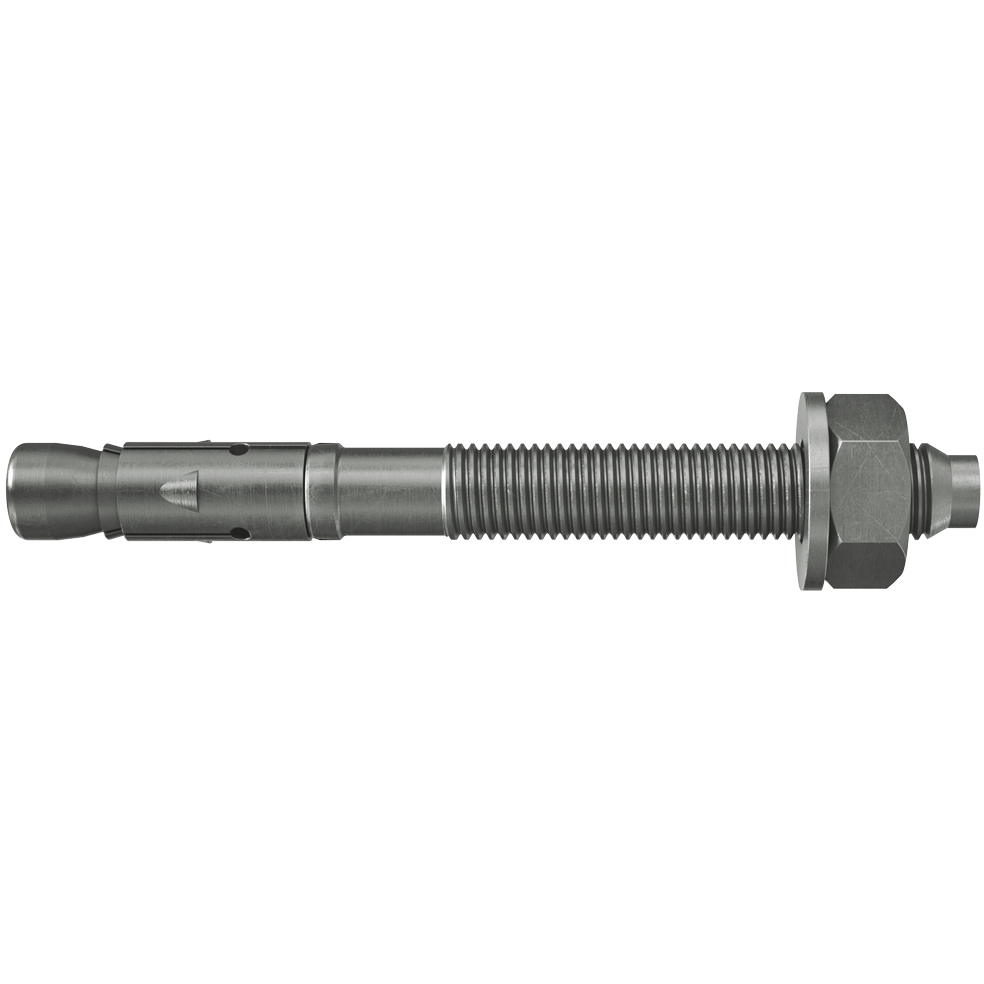

Fischer 501411 Bolt Anchor FAZ II M10/100mm Stainless Steel A4 Pack x 20

• Drill hole diameter d0 10 [mm]
• Min. drill hole depth for through fixings h2 175 [mm]
• Anchor length l 185 [mm]
• Max. usable length hef,max./hef,min. tfix 100/120 [mm]
• Thread Ø x length M 10 x 100 [mm]
• Width across nut SW 17 [mm]

• The fischer bolt anchor FAZ II K A4 is the steel anchor for the most demanding requirements
• Heavy loads are fixed into cracked concrete with the steel anchor
• Due to simple mounting, the FAZ II A4 can be used in a particularly flexible manner
• The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties
• The stainless steel version is used to fix loads in outdoor areas
• The steel anchor is, for example, suitable for fixing railings, consoles, steel constructions, and gates

Top Features

• Powerful connection: Expansion clip ensures optimum load-carrying properties
• Fewer fixing points and smaller anchor plates save time and cost
• Simple assembly: few taps and minimal torque slippage
• This saves time and power
• Stainless steel: maximum security for outdoor use

Advantages

• The FAZ ll tried and tested expansion clip enables the highest load bearing capacity
• Thus fewer fixing points and smaller anchor plates are required
• The reduced anchorage depth (new also for M8 version) allows for significantly reduced drill hole depths and reduces the number of reinforcement hits
• This allows for a noticeably quicker installation
• Fewer hammer blows when hammering in the anchor, together with the low torque slippage, ensure a noticeably simple and comfortable setting process
• The international approvals guarantee maximum safety and the best performane
• These approvals even cover the use in earthquake zones (seismic performance) or the use of hollow drills

Functioning

• The FAZ II is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread
• When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall
• The anchor is set in line with the approval once the preset installation torque is achieved
• In the case of series installation, we recommend using the FABS anchor bolt setting tool

Download Load Table

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_faz-ii_f_%23sen_%23aip_%23v3.pdf

Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_05-0069-1_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fazii-3_f_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_icc_01_fazii_f_%23sall_%23aip_%23v8.pdf
