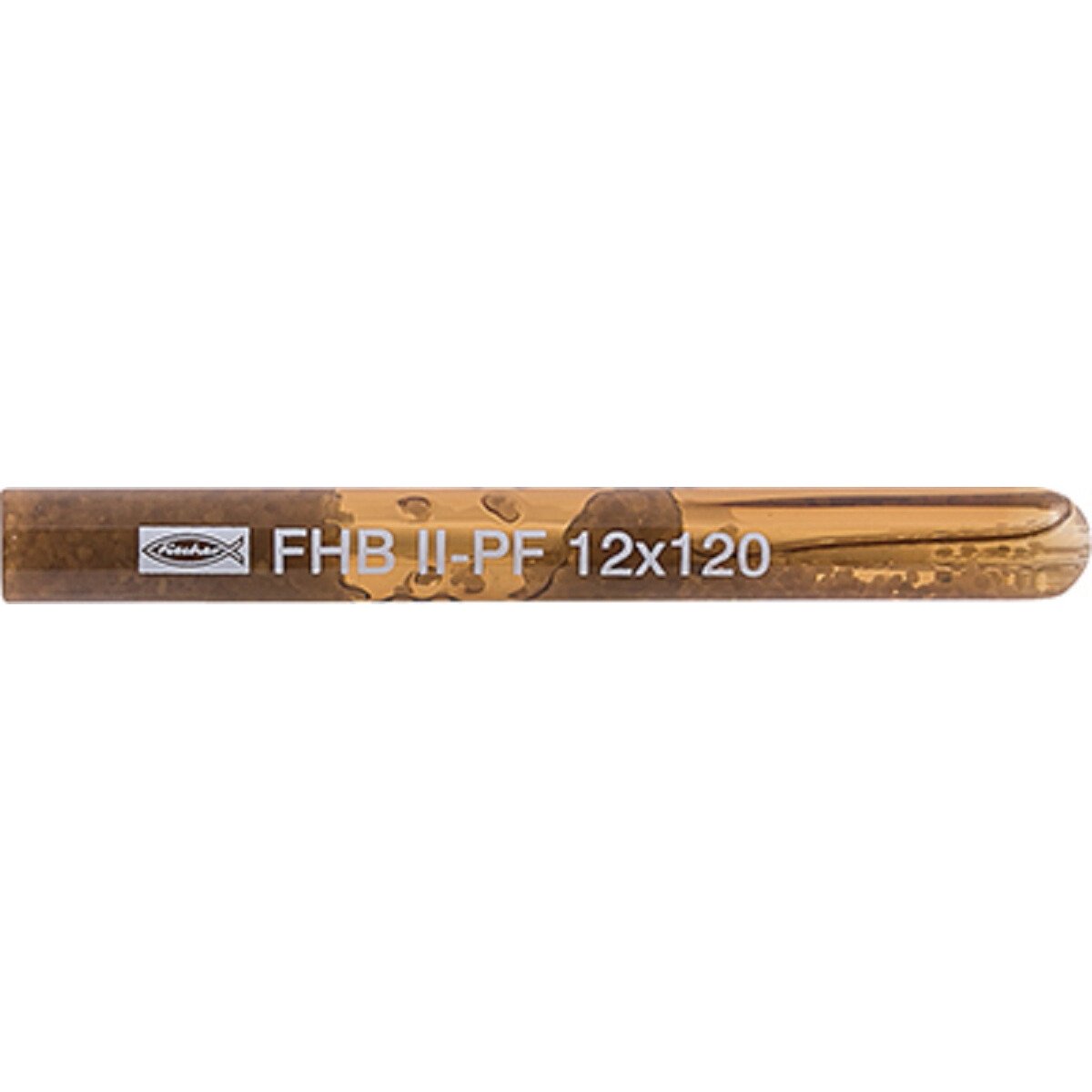

Fischer 500544 Resin Capsule FHB II-PF 12 x 120 High Speed Pack x 10

• The fischer cartridge FHB II-PF HIGH SPEED is a system component of the fischer Highbond system FHB II for fixing in cracked and non-cracked concrete
• The mortar cartridge contains a styrene-free vinylester mortar and sets very quickly
• The mortar cartridge can be used with the fischer Highbond anchor rods FHB II-A S (standard), Highbond anchor rods FHB II-A L (long) made of zinc-plated steel, made of stainless steel, and made of highly corrosion-resistant steel
• The fischer rod anchor are set with the setting tool RA-SDS through rotating and hitting motions using a hammer drill
• The capsule is destroyed during the setting process, which mixes and activates the mortar compound
• When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall
• Using the fischer Highbond system FHB II means that façades, machines, and steel constructions are securely installed within internal and external areas.

Top Features

• Same load level as with injection mortar - but without drill hole cleaning
• Very fast curing
• This mainly lowers waiting time for series installations
• Maximum load values in cracked concrete
• Thus fewer fixing points are necessary
• Pre-portioned quantities are especially cost-effective for individual fixings
• This reduces installation time and lowers costs
• ETA approval for cracked concrete

Advantages

• The pre-portioned resin capsule FHB II-P can be used in uncleaned drill holes, making it the economical and quick solution
• It is also ideal for individual applications or under water
• The special formulation used in the resin capsule FHB II-PF HIGH SPEED ensures particularly fast setting and thus large time savings

Functionality

• The resin capsules FHB II-P and FHB II-PF HIGH SPEED are suitable for pre-positioned installation
• When using the resin capsule, set the anchor rod through rotating and hitting motions with a hammer drill.
• Use the RA-SDS setting tool for this
• When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall
• The styrene-free vinylester mortar fully seals the drill hole

Safety Data Sheets for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_sdb_01_fhbiipf_f_%23sen_%23aip_%23v7.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/ma_01_fhbii_f_%23sall_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_sdb_01_fhbiip_f_%23sen_%23aip_%23v8.pdf

Approval Download Sheets

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_05-0164-1_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fhb-ii-1_f_%23sen_%23aip_%23v1.pdf

Assembly Instructions

https://content.fischer.de/cbfiles/fischer/zulassungen/ma_01_fhbii_f_%23sall_%23aip_%23v1.pdf
