Fischer 48416 Hammerset Anchor EA II M16 Stainless Steel R Pack x 20

• The fischer Hammerset anchor EA II R is an internal threaded anchor made of stainless steel
• The Hammerset anchor is set flush to the surface of the anchoring base using the hammer
• With the setting tool EHS Plus or the machine setting tool EMS the sleeve is expanded by driving in the internal rod and expands against the drill hole wall
• For correct expansion to take place, no torque must be applied to the screw or the threaded rod

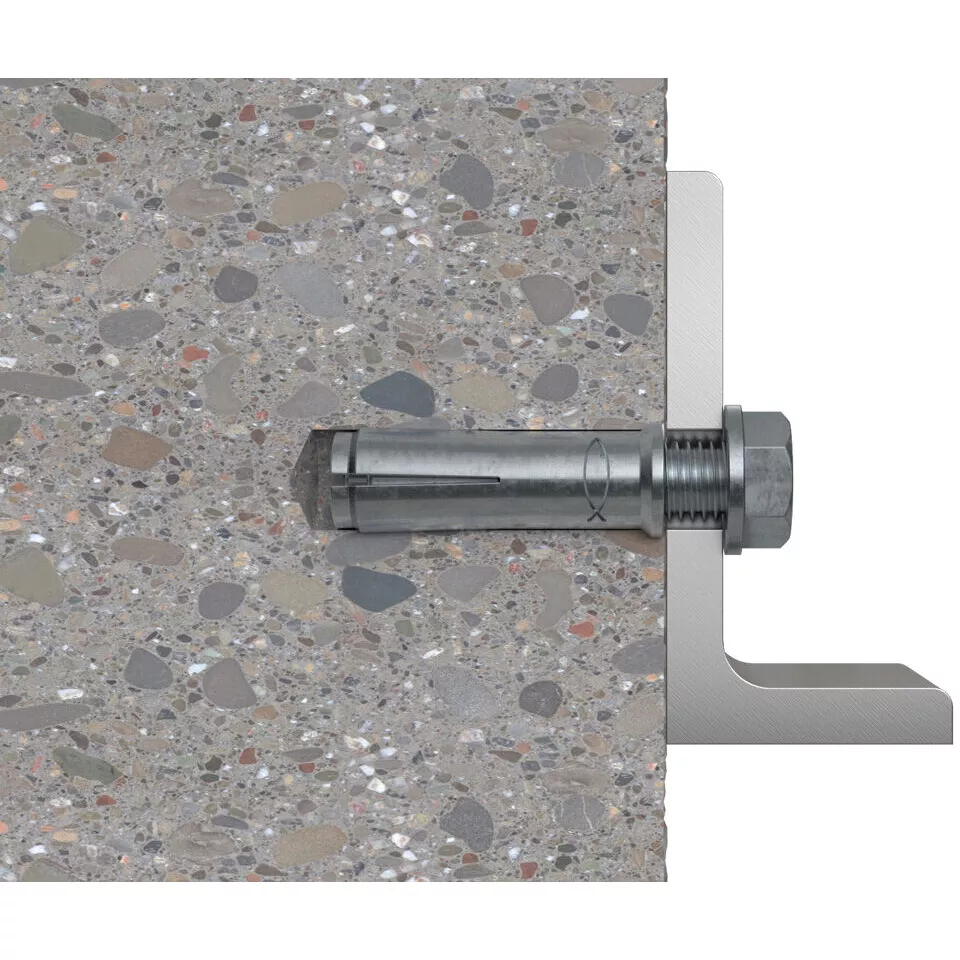

• The fischer Hammerset anchor EA II R is ideal for fixing steel constructions and formwork props in external areas with approval

Top Features

• Simple Hammerset installation: no slippage during assembly due to the pronounced edge on the anchor sleeve
• Use of standard metric screws and threaded rods lowers complexity
• Power-saving series installation with machine setting tool EA II S-SDS
• ETA approval for non-cracked concrete and multiple fixing
• Made of stainless steel for fixings used outside

Advantages

• The embossed rim prevents the anchor sleeve from slipping, thus ensuring a trouble-free hammerset installation
• The metric internal thread means that it is possible to use standard screws or threaded rods for the ideal adaptation to suit the intended use
• The EMS machine setting tool allows for effortless installation, particularly in the case of series installations
• The embossing that is applied when expanding with the EHS Plus setting tool offers a simple control of the anchoring and provides increased safety
• Fixing point at hef 25 mm prevents anchor of falling out of the drill hole before being expanded
• The black fixing point prevents the anchor from falling out of the drill hole during overhead installation

Functionality

• The EA II is suitable for pre-positioned installation
• Position the hammerset anchor in the drill hole and drive in flush to the surface of the anchor base using the hammer
• The sleeve is then expanded by driving in the internal bolt with the EHS Plus setting tool (alternative: EMS machine setting tool), and expanded against the drill hole wall
• The setting tools must sit on the rim of the anchor to ensure correct expansion
