Fischer 45693 Stand-Off Installation Thermax 10/120 M6 Pack x 20

• The fischer stand-off insulation system Thermax 8 is a solution for fixing into external walls without a thermal bridge in ETICS
• The stud screw with the glass-fibre reinforced cone cuts its own way through the plaster into the insulation
• During mounting, the stud screw is rotated into the universal fixing UX and is therefore secured within the building material
• The anti-cold cone at the tip of the stud screw creates a thermal barrier and holds the outer fixing
• The Thermax fixes light loads such as lights, letterboxes, or lightning conductors to concrete, aerated concrete, and masonry from solid and perforated brick

Top Features

• No thermal bridge due to the anti-cold cone
• Installation without setting tool. This saves time
• Self-milling plastic cone
• Exact alignment of the attachment without pressure marks and damage to the ETICS
• Suitable for all building materials

Advantages

• The stand-off installation allows for the fixture to be adjusted to the exact position required, which avoids pressure marks and damage to the ETICS
• The plastic cone creates a thermal barrier between the fixture and the inner fixture, and offers an energy-optimised fixing
• The glass-fibre-reinforced plastic cone cuts its own way through the ETICS with a positive fit, and allows for a simple and fast installation without the need for any special tools
• Combining Thermax 8 with the universal plug UX provides secure anchoring in the substrate
• Without the UX plug, direct installation in a wooden substrate is possible after pre-drilling, too.

Functionality

• The Thermax 8 is suitable for pre-positioned installation
• The self-tapping, glass-fibre-reinforced cone cuts its own way through the plaster into the insulation during installation
• The anti-cold cone uses a thermal barrier to minimise heat losses
• Installation does not require any special tools

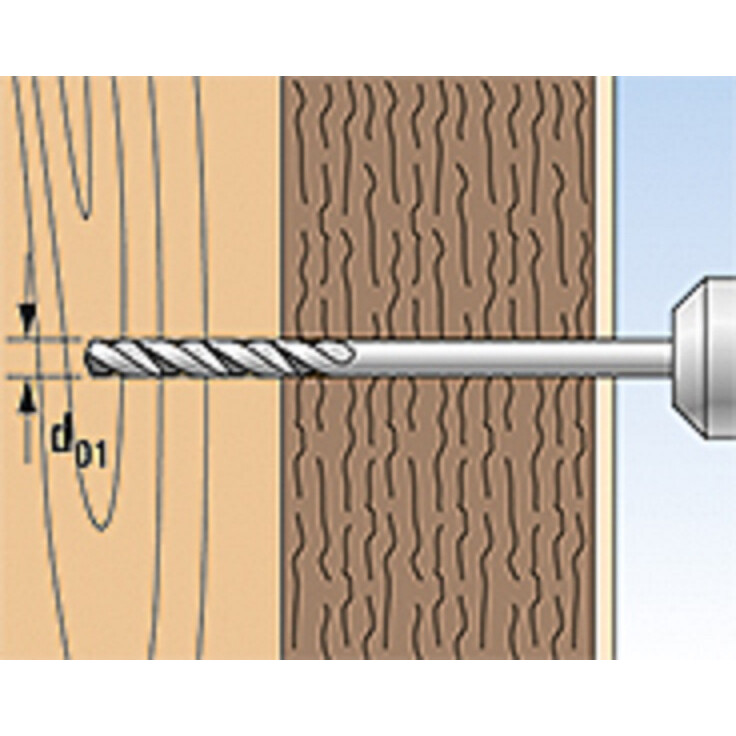

• For use in wood without a plug, the wood (see the footnote beneath the load table) and plaster must be pre-drilled: Thermax 8: d0 = 14 mm, h0 = 50 mm.
• The assortment offers connection possibilities using M6 metric screws, 6.3 mm self-tapping screws, 6.0 mm chipboard screws, and 4.5-5.5 mm chipboard screws if using an SX 5 plug.

Load Table for Downloading

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_thermax-8-10_f_%23sen_%23aip_%23v4.pdf

Insallation Instructions

https://content.fischer.de/cbfiles/fischer/zulassungen/ma_01_thermax_f_%23sen_%23aip_%23v4.pdf
