Fischer 44916 High Performance Anchor FH II M12 x 18/50mm H With Domed Nut Pack x 20

• Drill hole diameter d0 18 [mm]
• Min. drill hole depth for through fixings h2 155 [mm]
• Anchor length l 170 [mm] Max. fixture thickness t fix 50 [mm]
• Thread M M 12 Width across nut SW 19 [mm]

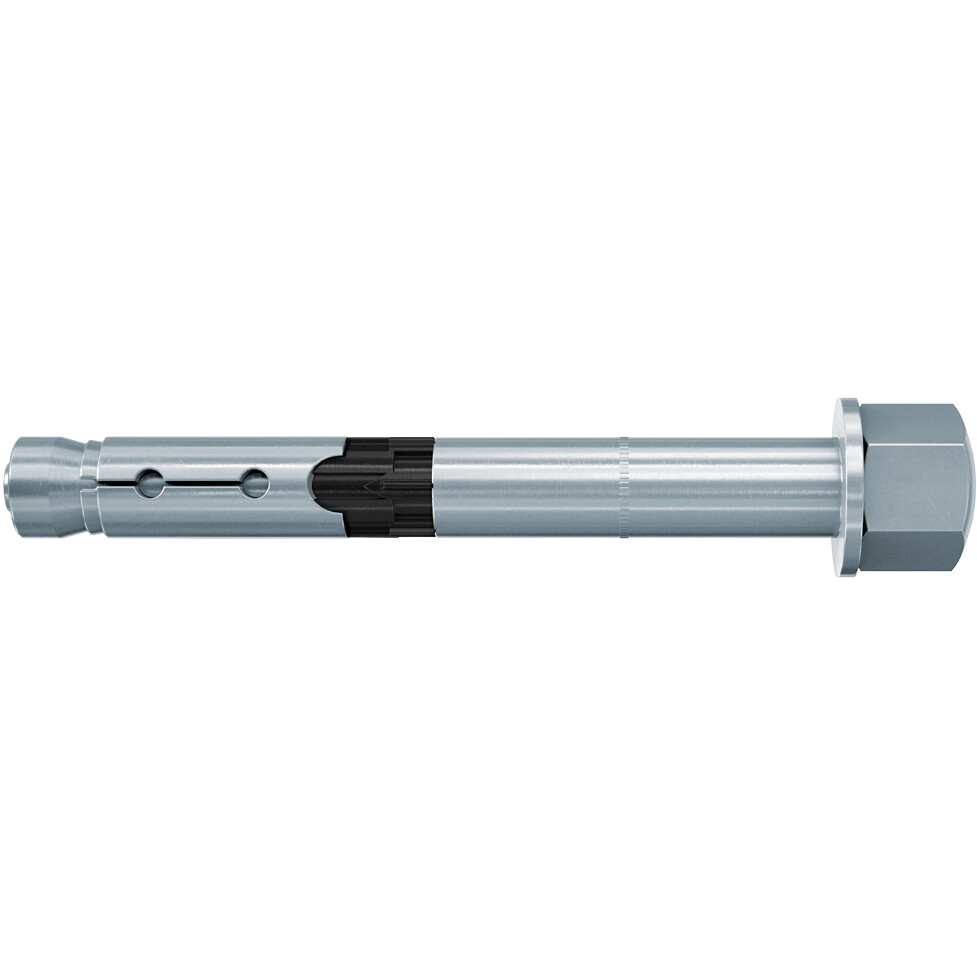

• The fischer high-performance anchor FH II H with cover nut is a sleeve anchor made of zinc-plated steel
• The anchor is set in the time-saving through-type installation
• When tightening the anchor, the cone is pulled into the expansion sleeve and expands it against the hole wall
• The black plastic ring prevents the anchor from rotating and absorbs the torque slippage
• This means that the fixture is pulled towards the anchoring base
• The fischer high-performance anchor FH II H with cover nut is ideally suited to fix steel constructions, machines, and gates in cracked and non-cracked concrete

Top Features

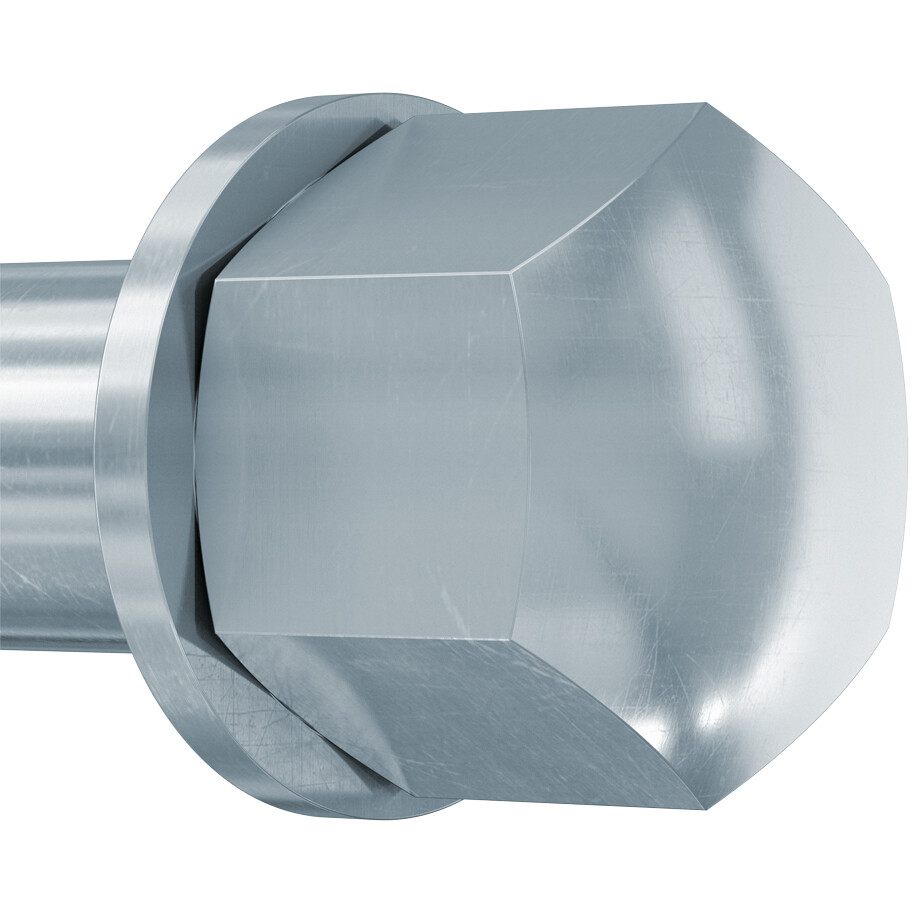

• With Cover Nut
• The international approvals guarantee maximum safety and maximum performance
• Also for applications in earthquake regions (seismic C1 and C2).
• The ideal combination of screw shank and sleeve enables a high transverse load capacity and fewer fixing points
• The optimised geometry intelligently reduces the setting energy and thus ensures a force-saving assembly.

Advantages

• The international approvals guarantee maximum safety and the best performance
• The European Technical Assessment even cover use in earthquake zones (seismic C1 and C2)
• The protruding head for stable and robust fixings
• The design between the bolt and the sleeve ensures high shear load-bearing capacity. Thus, fewer fixing points are required
• The optimised geometry intelligently reduces the energy required for assembly. The approval regulates the use of hollow drills.

Functioning

• The FH II is suitable for push-through installation
• When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall
• The black plastic ring prevents rotation when tightening the anchor, and acts as a crumple zone to take the torque slippage so that the fixture is pulled onto the anchor base
• Available head shapes for flexible design solutions: Countersunk head (type SK), hexagon head (type S), bolt version with nut and washer (type B) and cap nut (type H).
