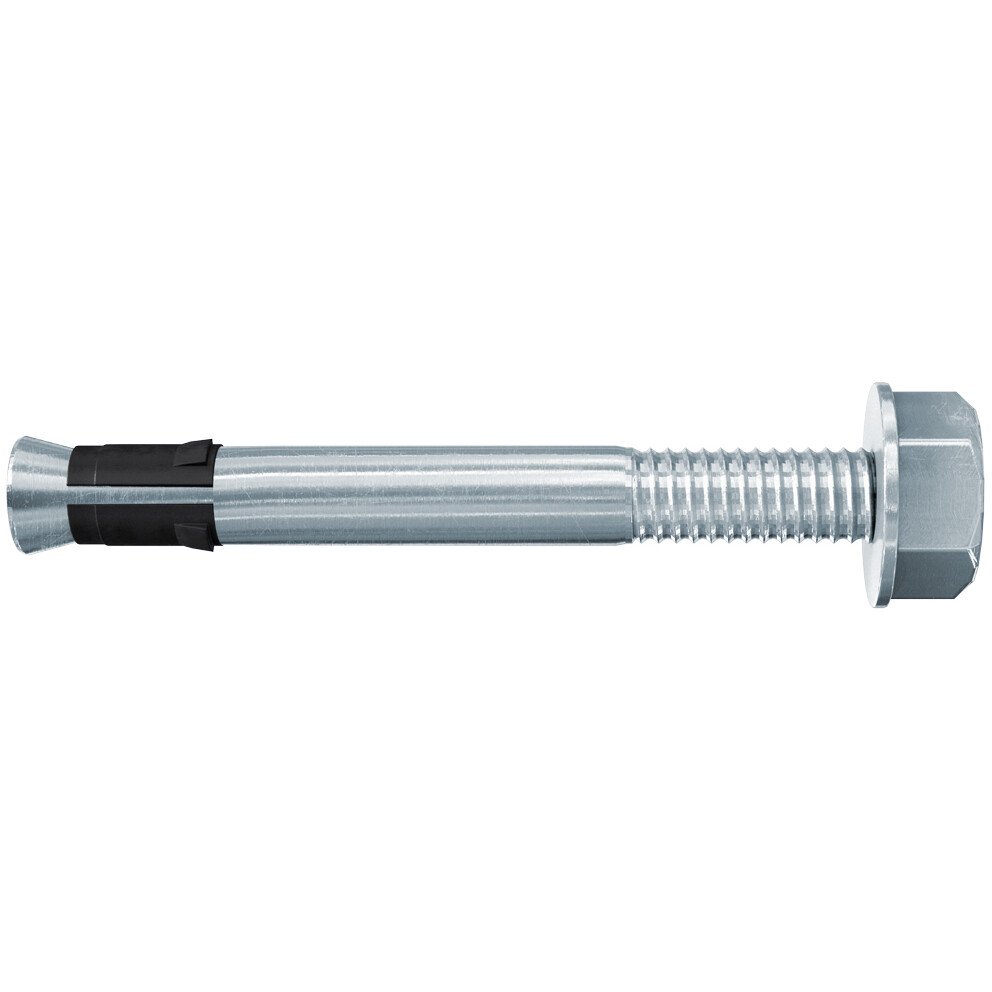

Fischer 44114 Nail Anchor FNA II 6 x 30 M8/5 Electro Zinc Plated Pack x 50

Fischer 44114 Nail Anchor FNA II 6 x 30 M8/5 Electro Zinc Plated Pack x 50
Ex. VAT £127.33 Inc. VAT £152.80

Usually ships within 14 working days with Free Shipping

The installation-friendly Hammerset anchor with thread and flange nut for multiple fixings

Description

Details

  • The fischer nail anchor FNA II 6 with thread and flange nut is made of zinc-plated steel
  • The FNA II is set in a time-saving manner in the push-through or pre-positioned installation with just a few taps of the hammer
  • The installed FNA II expands automatically under load
  • The cone is then pulled into the expansion clip and expands it against the hole wall
  • Above all, the fischer nail anchor FNA II with thread and flange nut is suitable for fixing metal clamps for conduits and pipes in internal areas

Top Features

  • Hammerset installation saves time
  • No reinforcement hits due to low anchorage depth
  • This saves time and costs during series installation
  • Expansion clip provides a firm hold
  • ETA approval for multiple fixings

Advantages

  • Easy removal of fire protection board without damage
  • Reusability of fire protection board
  • Safe anchorage, particularly when exposed to vibration, wind, and pushing/pulling influences
  • Low anchoring depth (30 mm)
  • Convenient installation without torque-controlled setting tool
  • Approved system that has proven itself one million times over

Functionality

  • The washer significantly increases the pulling forces and, at the same time, prevents the damage of the panel during removal
  • Removal by means of easy pinching off of nail head thanks to special 2-stage plie

Load Table

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fna-ii_f_%23sen_%23aip_%23v2.pdf

Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_06-0175_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fna-ii_f_%23sall_%23aip_%23v2.pdf

Features

Features

Technical Data
ETA-approval
Drill hole diameter d0 6 [mm]
Min. drill hole depth for through fixings h2 45 [mm]
Anchor length l 51 [mm]
Max. fixture thickness t fix 5 [mm]
Thread M M 8
Width across nut SW 13 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4006209441145
Applications
Fire protection plates
Fire protection boards
Ventilation systems
Wire and Nonius hangers
Mounting rails
Metal clamps
Substructures made of wood and metal
Building materials
Concrete C12/15 to C50/60, cracked and non-cracked
For multi-point fixings of non-load-bearing systems
You can find detailed information on building materials in the registration document.
