Fischer 44109 Nail Anchor FNA II 6 x 30 M6/5 Electro Zinc Plated Pack x 100

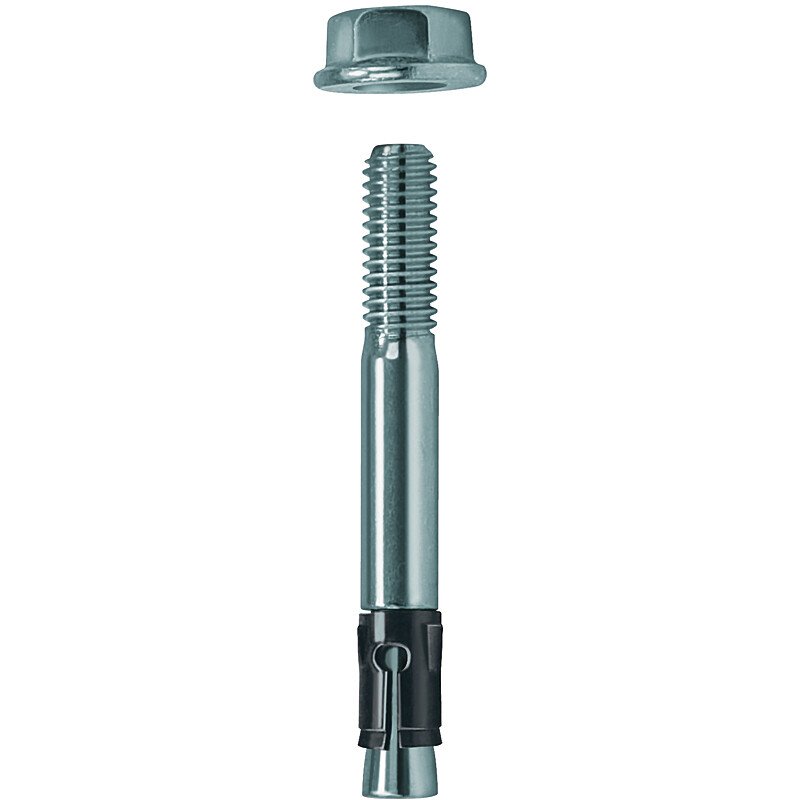

• The fischer nail anchor FNA II 6 with thread and flange nut is made of zinc-plated steel

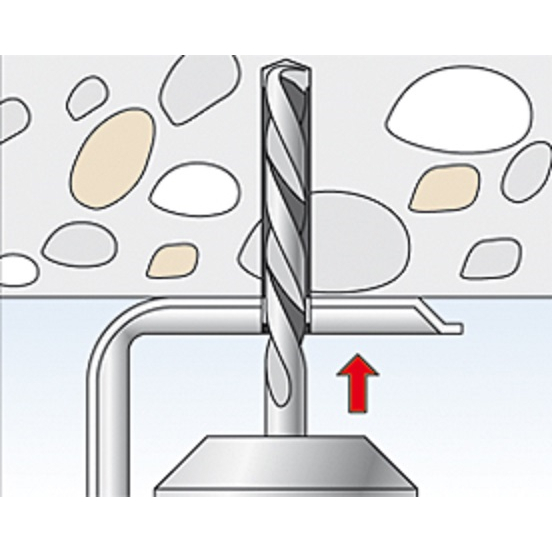

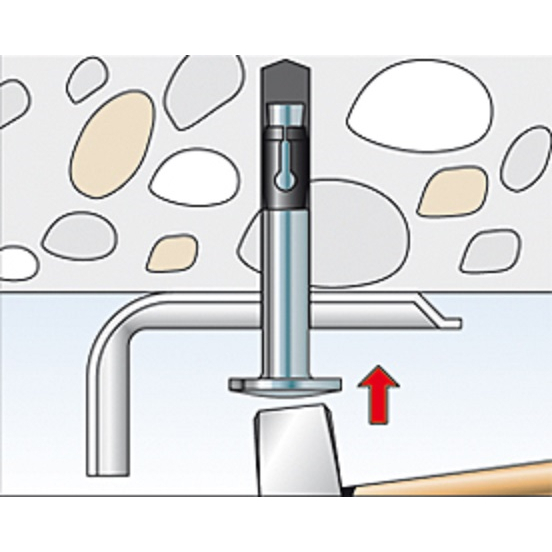

• The FNA II is set in a time-saving manner in the push-through or pre-positioned installation with just a few taps of the hammer

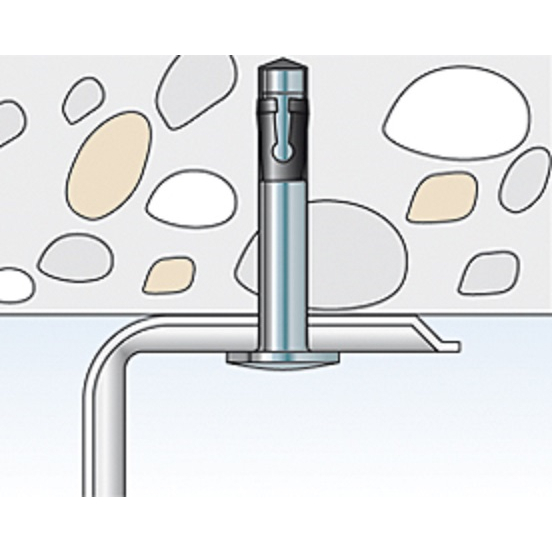

• The installed FNA II expands automatically under load
• The cone is then pulled into the expansion clip and expands it against the hole wall
• Above all, the fischer nail anchor FNA II with thread and flange nut is suitable for fixing metal clamps for conduits and pipes in internal areas

Top Features

• Hammerset installation saves time
• No reinforcement hits due to low anchorage depth
• This saves time and costs during series installation
• Expansion clip provides a firm hold
• ETA approval for multiple fixings

Advantages

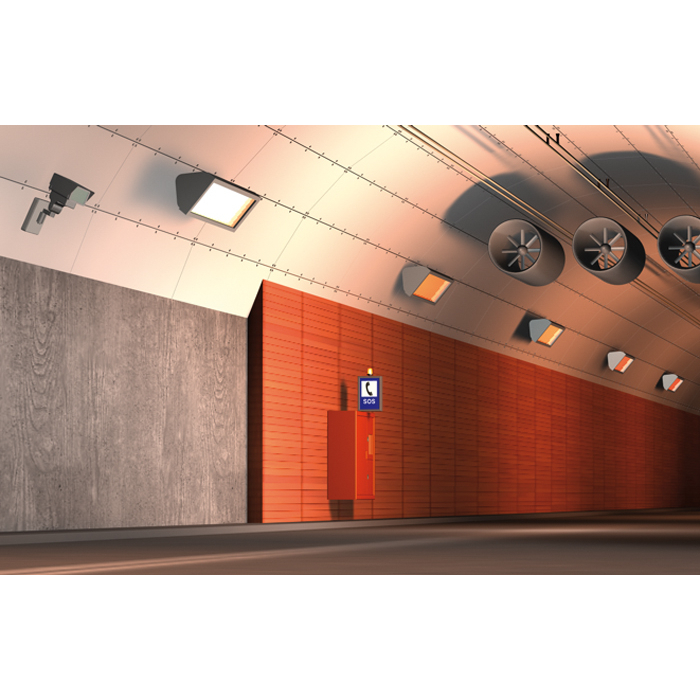

• Easy removal of fire protection board without damage
• Reusability of fire protection board
• Safe anchorage, particularly when exposed to vibration, wind, and pushing/pulling influences
• Low anchoring depth (30 mm)
• Convenient installation without torque-controlled setting tool
• Approved system that has proven itself one million times over

Functionality

• The washer significantly increases the pulling forces and, at the same time, prevents the damage of the panel during removal
• Removal by means of easy pinching off of nail head thanks to special 2-stage plie

Load Table

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fna-ii_f_%23sen_%23aip_%23v2.pdf

Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_06-0175_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fna-ii_f_%23sall_%23aip_%23v2.pdf
