Fischer 43632 Internal Threaded Sockets FIS E 11 x 85 M 8 Pack x 10

The fischer internal threaded anchor FIS E is a system component for use with the fischer injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN for fixations in masonry made from solid brick, perforated brick, and aerated concrete

• When the threaded anchor is installed, the mortar is pressed through the grating structure and creates a form fit with the structure of the brick

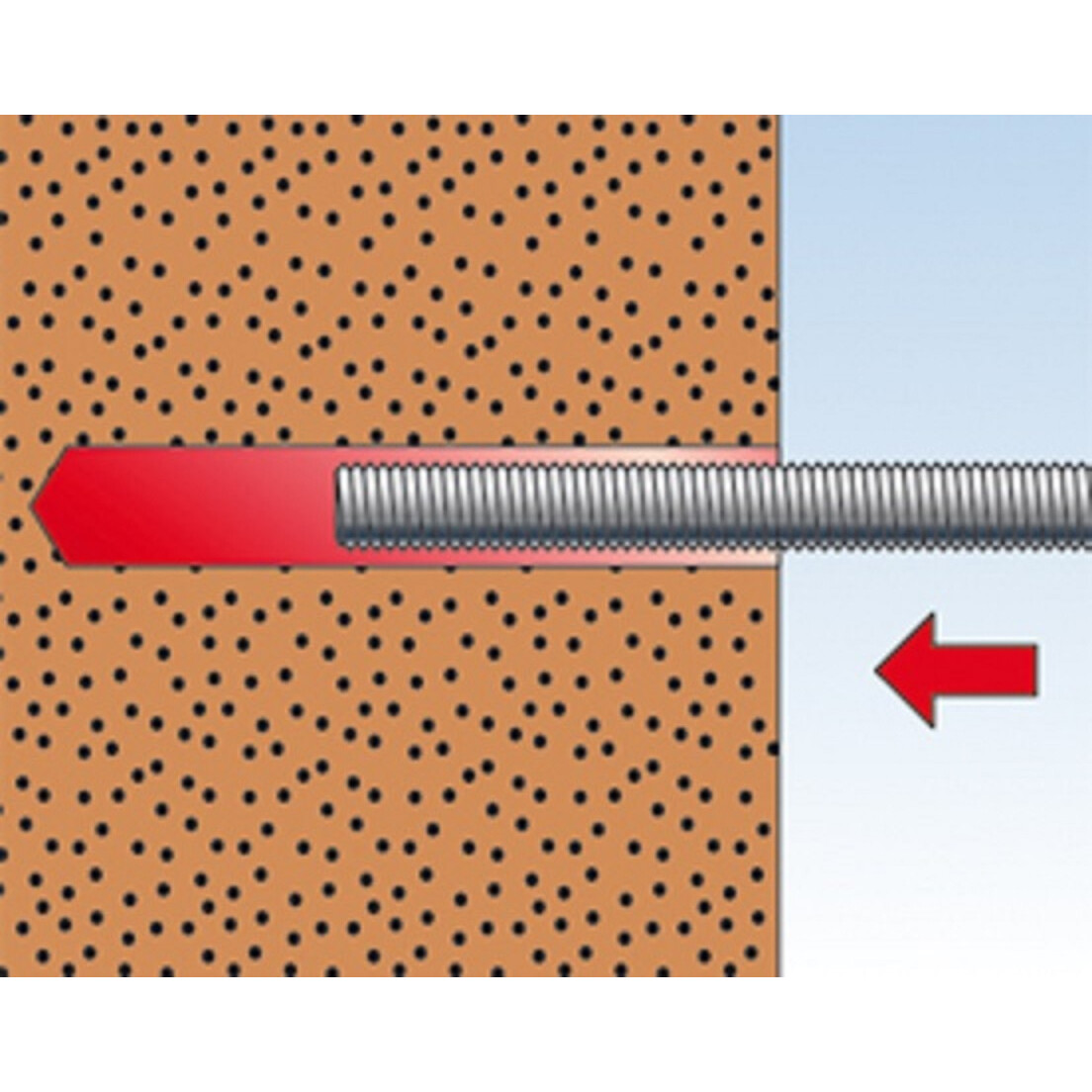

• The metric internal thread enables the use of conventional metric screws or threaded rods
• The internal threaded anchor is suitable for surface-flush removal, and the fixing point can be reused
• This means that the FIS E is particularly suited to detachable and temporary fixings both inside and outside
• The approvals of the various injection mortars must be observed

Top Features

• Conventional metric screws and threaded rods can be used
• This lowers costs and complexity
• Surface flush removal possible
• Fixing points can be reused
• ETA approval for maximum safety

Product Description

• The fischer injection internal threaded anchor FIS E is made of zinc-plated steel and is the system component used for using fischer injection mortar in masonry
• The internal threaded anchor is set manually by lightly rotating it.
• The injection mortar bonds the entire surface of the internal threaded anchor with the drill hole wall in solid brick
• In hollow building materials the mortar is pressed through the grid on the anchor sleeve and bonds with the perforated brick with an interlock
• This means that the load is directed into the building material
• Use of the injection internal threaded anchor FIS E allows for surface-flush removal of the fixture

Advantages

• The internal threaded anchor FIS E is suitable for use with injection mortar in masonry or aerated concrete
• The internal threaded anchor FIS E allows for surface-flush removal and the reuse of the fixing point, and therefore offers the best possible flexibility
• The metric internal thread allows for the use of standard metric screws or threaded rods, which enables ideal adaptation in line with the intended use
• Please refer to the approvals for the mortar used.

Load Tables for Downloading

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_vollmau_f_%23sen_%23aip_%23v1.pdf

Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_10-0383_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_10-0383-1_%23sen_%23aip_%23v1.pdf
