- Description
-
Details

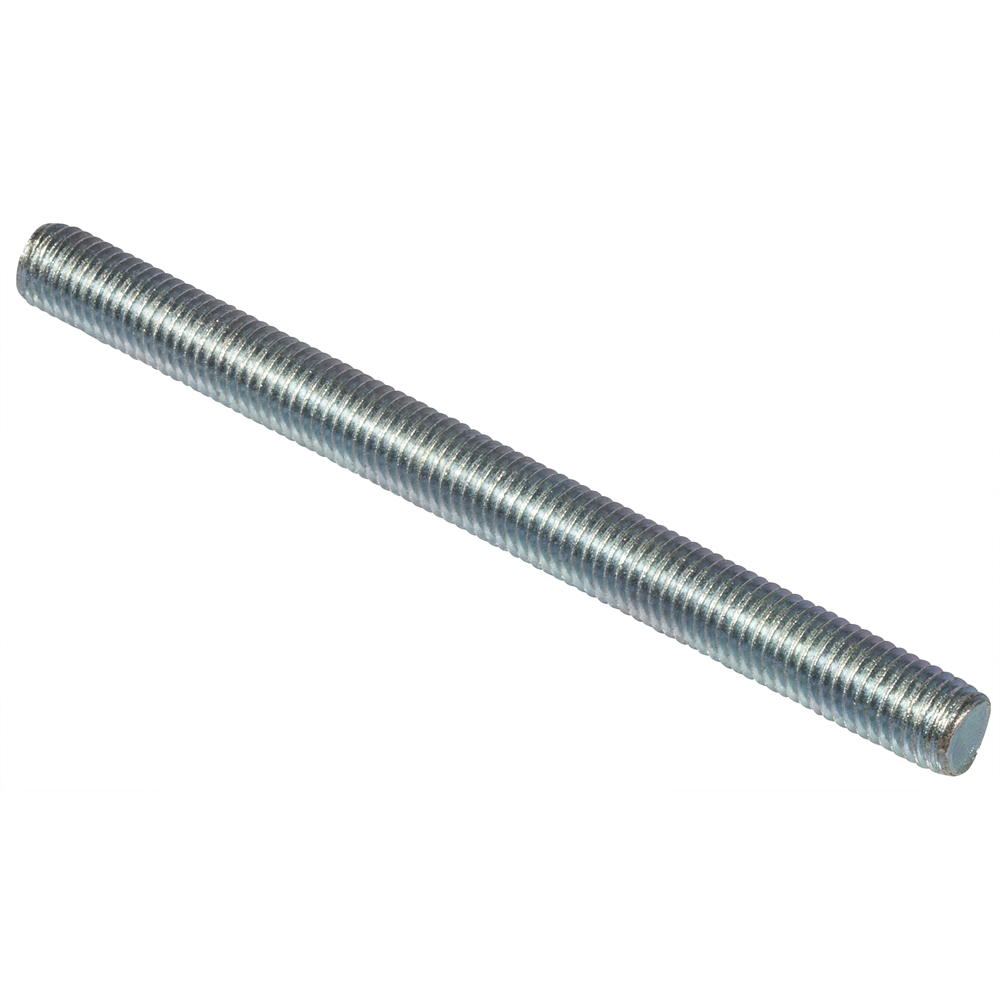

- The fischer threaded rod G is a connection element between the fixing point in the load-bearing element and the fastening element on the suspended or elevated element. For example, pipes or ventilation ducts are fixed to it.
- The threaded rod is made of high-quality steel.
Top Features
- Made of zinc-galvanised steel
- Simple to assemble
- Thread geometry allows for easy screwing in
- Ideal for fischer installation systems
Properties
- Material threaded rod G (G 6 - G 24): DIN 976 steel 4.8 acc. to DIN EN ISO 898-1
- Material threaded pipe G (G 1/2" - G 3/4"): steel S235 JR (material no. 1.0037) acc. to DIN EN 10025
- Zinc plating: electro zinc-plated, min. 3 µm
Load Table for Download
https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_samo-g-gs-n_f_%23sen_%23aip_%23v1.pdf
- Features
Features

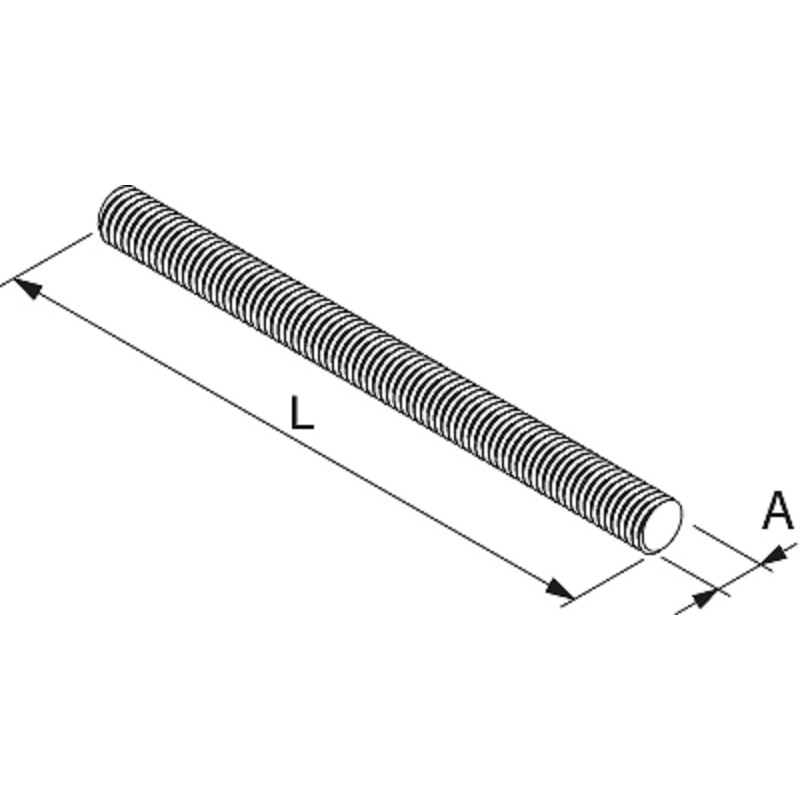

Technical Data Length l 1000 [mm] Thread A M 12 Amount 20 Unit(s) GTIN (EAN Code) 4006209209578
