Fischer 20949 Clamp Hanger TKL M12 Pack x 50

Fischer 20949 Clamp Hanger TKL M12 Pack x 50

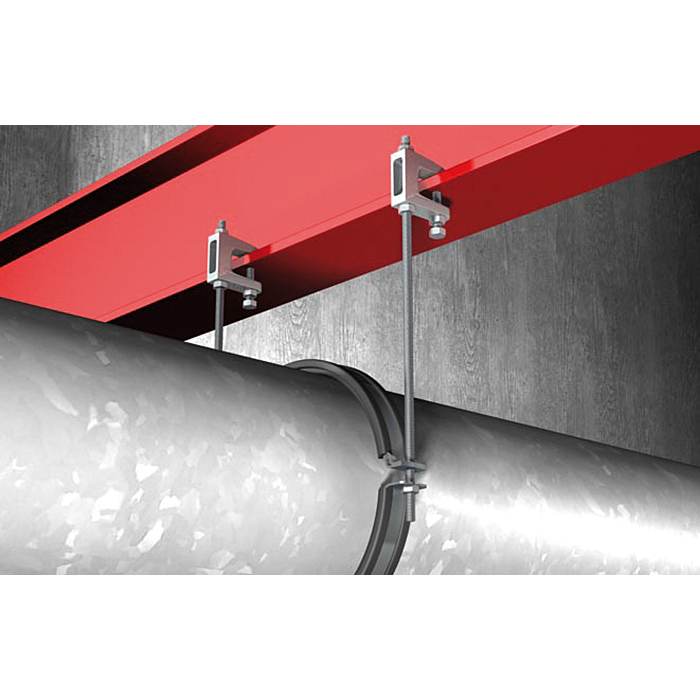

• The fischer clamp hanger TKL is suitable for the fixing of pipelines, in particular sprinkler pipes, to steel girders without welding and drilling
• The clamp hanger is secured with a screw
• The integrated thread socket enables the direct installation of a threaded rod
• VdS, FM, and UL certificates guarantee a safe installation
• The TKL is made from high-quality steel and is zinc-plated to provide protection against corrosion

Top Features

• VDS / FM / UL certificates

Product Description

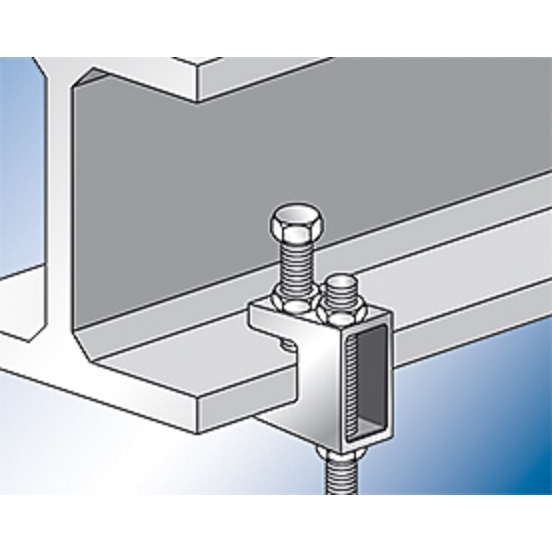

• The fischer clamp hanger with thread socket for simple fixing to steel girders via clamps

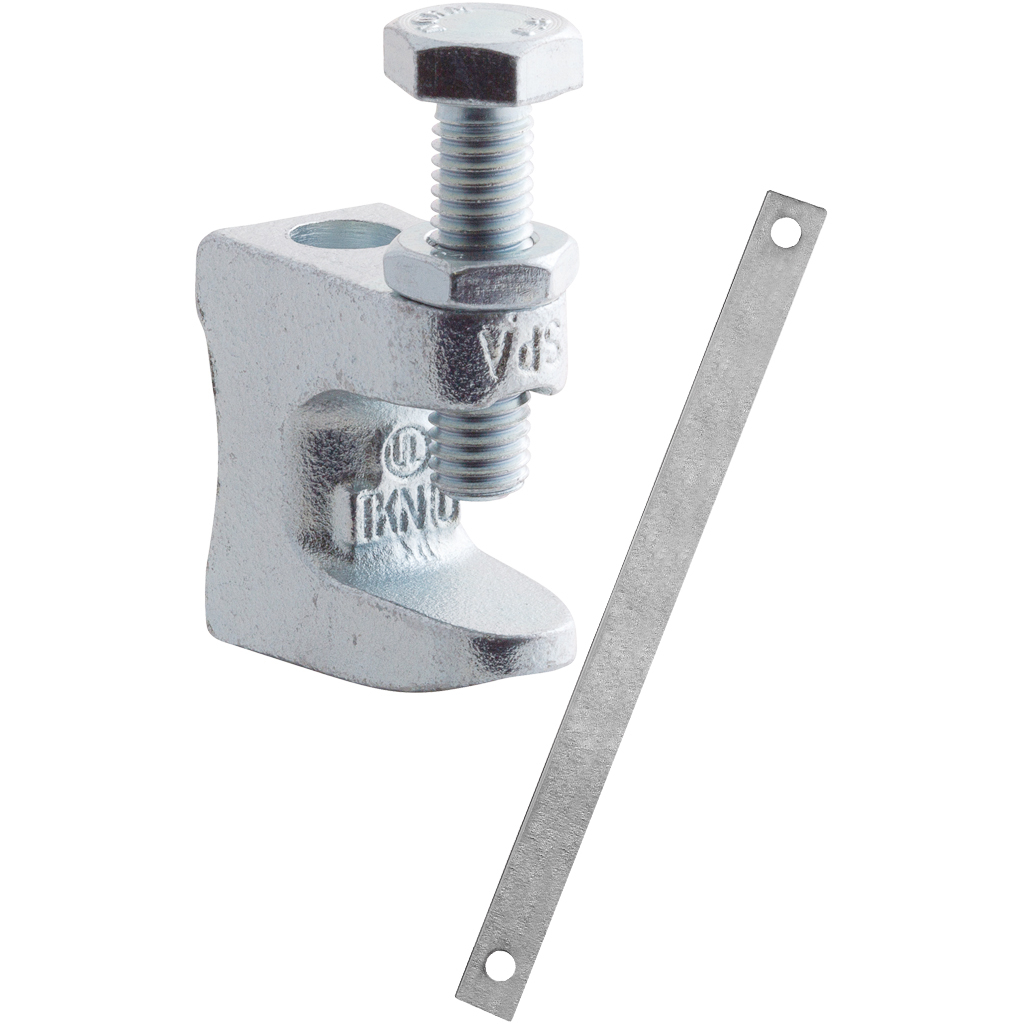

• Safety fishplates are required for VdS equipment over DN 65
• The hollow cut of the fixing screw effectively prevents it from slipping from the steel girder

Advantages/benefits

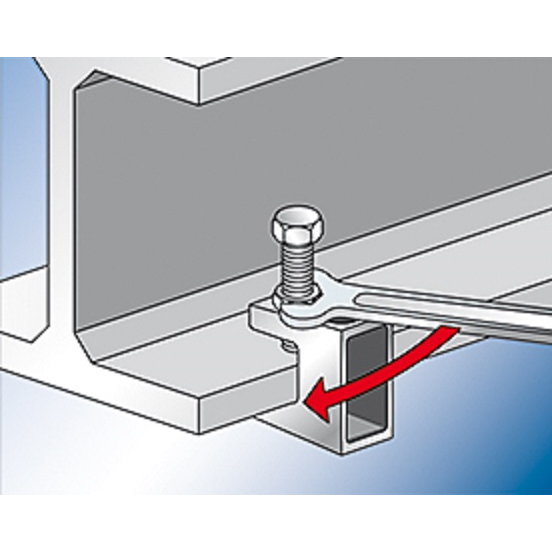

• The TKL design with its clamping screw allows for fixing to steel girders without the need for welding and drilling
• The design of the clamping screw prevents it from slipping from the steel girder
• VdS/FM/UL certificates guarantee independently tested safety.
• The solid TKL design guarantees a high load-bearing capacity

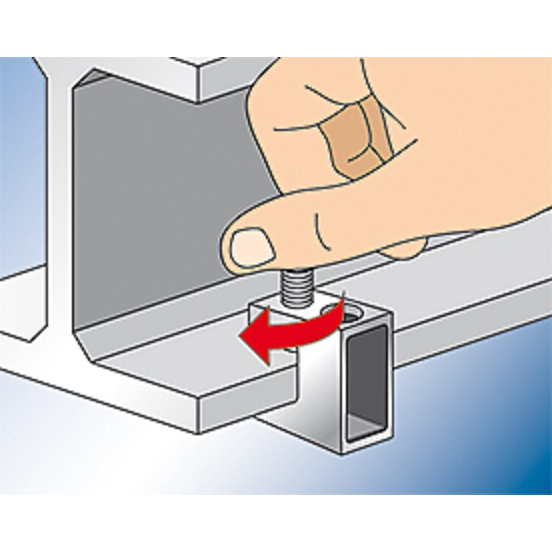

• The TKL with locking screw guarantees quick and easy installation

Properties

• Material TKL: malleable cast iron EN-GJMB-350-10 acc. to DIN 1562
• Material bolt: steel 8.8 acc. to ISO 4017
• Material nut: steel acc. to ISO 4035, Strength category 4
• Material SS-TKL: steel DX51D (material no. 1.0226) acc. to EN 10214
• Zinc plating: electro zinc-plated, min. 5 µm

Load Table for Downloading

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_samo-tkl-n_f_%23sen_%23aip_%23v1.pdf

Declaration of Performance Download

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_samontec_f_%23sen_%23aip_%23v1.pdf

Certificate of Compliance Download

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_fms_01_tkl_f_%23sall_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_cert_tkl_f_%23sen_%23aip_%23v1.pdf
