- Description
-
Details

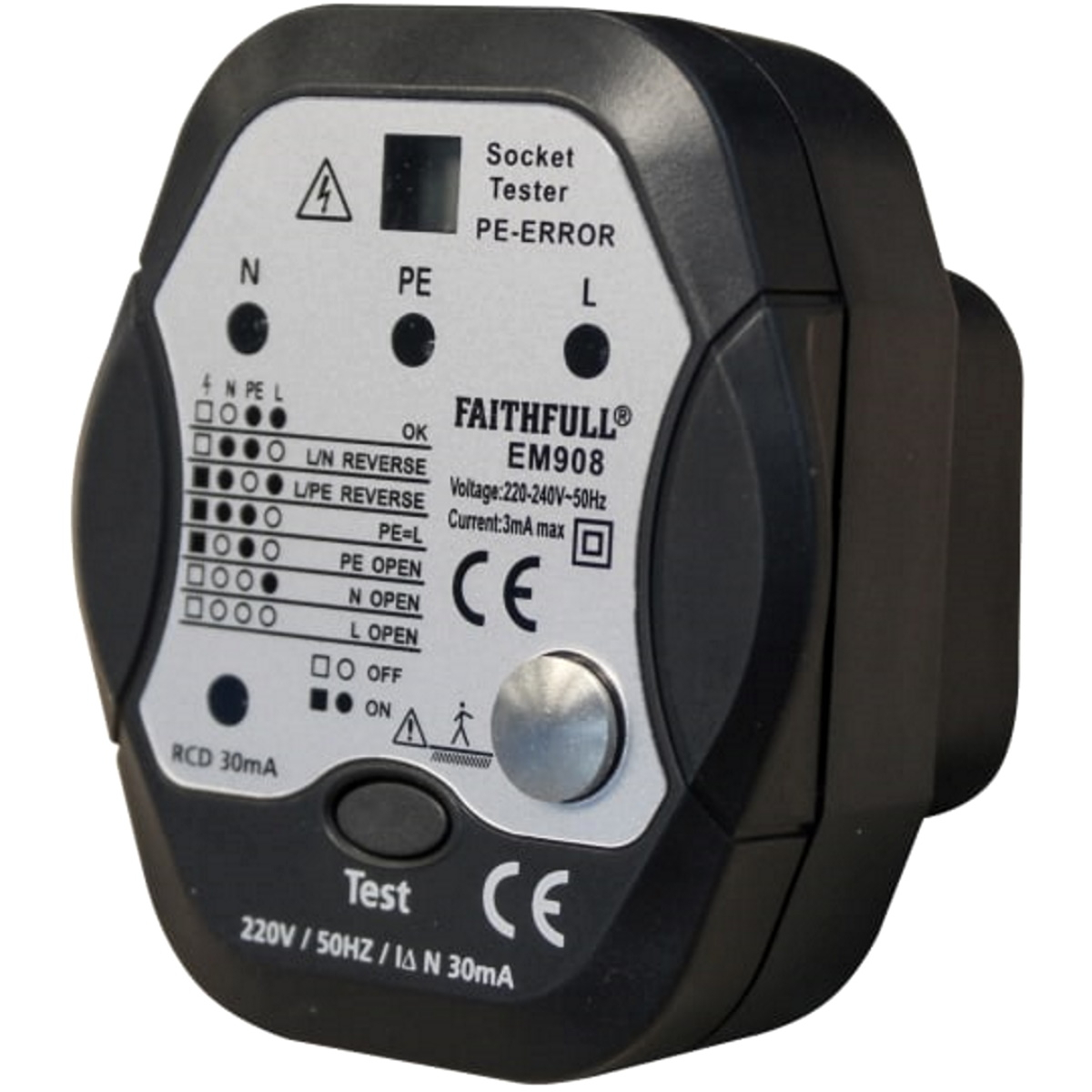

Essential mains safety tester designed for testing socket wiring and RCDs.
Determines whether a socket is wired correctly or incorrectly.
Used in conjunction with the coding table provided, the 5 combined indicators show the true status of the sockets wiring condition.
Provides a true ground error indication through the LCD if dangerous contact voltage is present at the protective earth (PE).
3 neon indicators for L-N-PE provides rapid detection of correct/incorrect socket wiring.
Equipped with an additional RCD tester for testing the operation of RCDs with a rating of not more than 30mA.- Features
Features
Socket Type:
UK 240V 3-Pin Nominal Voltage: 220V ±10% Frequency Range: 50~60Hz Measurement Category: CATIII, 300V RCD Test Time: 60~300ms Contact Voltage Threshold: <35 AC against ground depending on coupling to earth RCD Test Current: 30mA ±15% Dimensions: 77 x 67 x 66mm Weight: approx. 70g
