- Description
-
Details

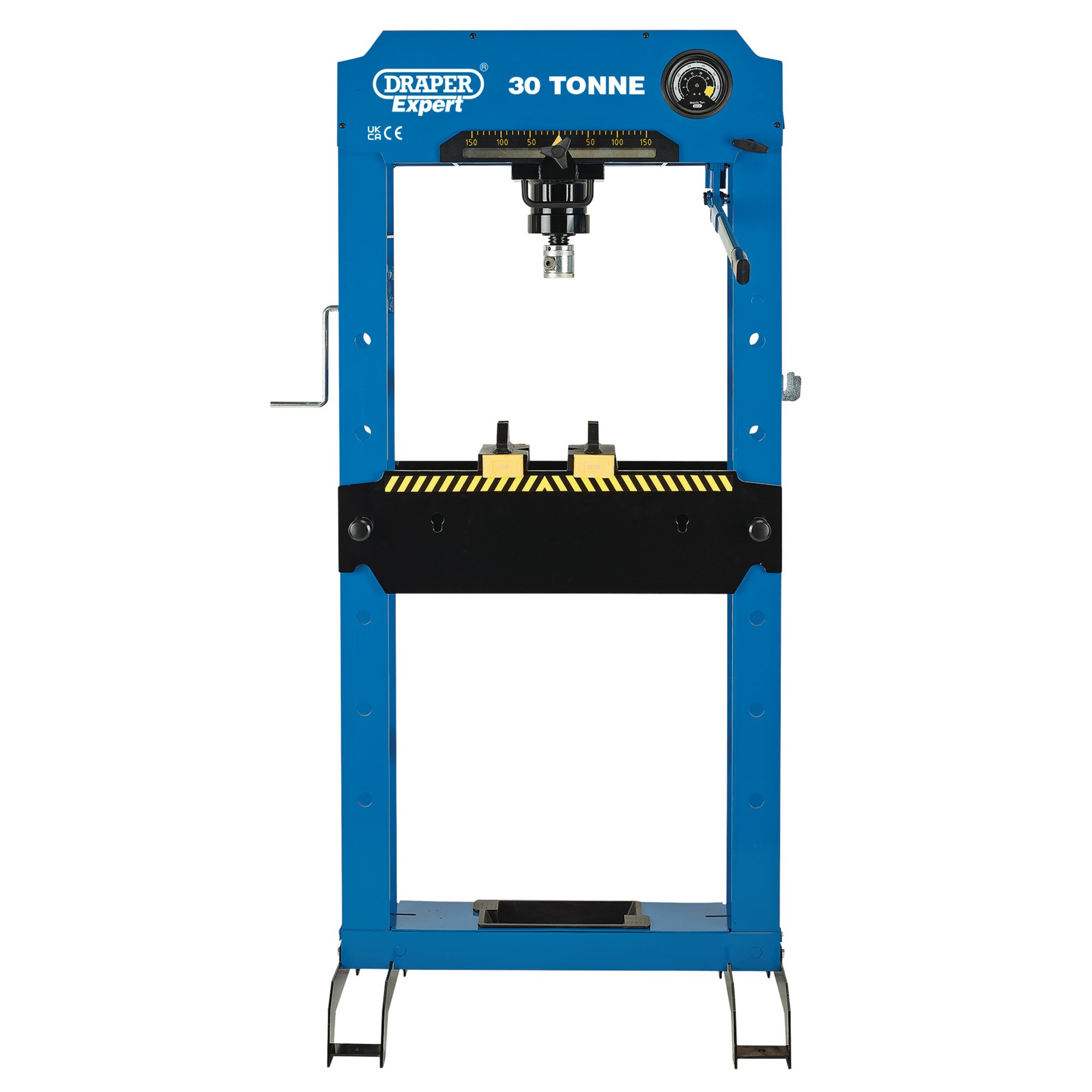

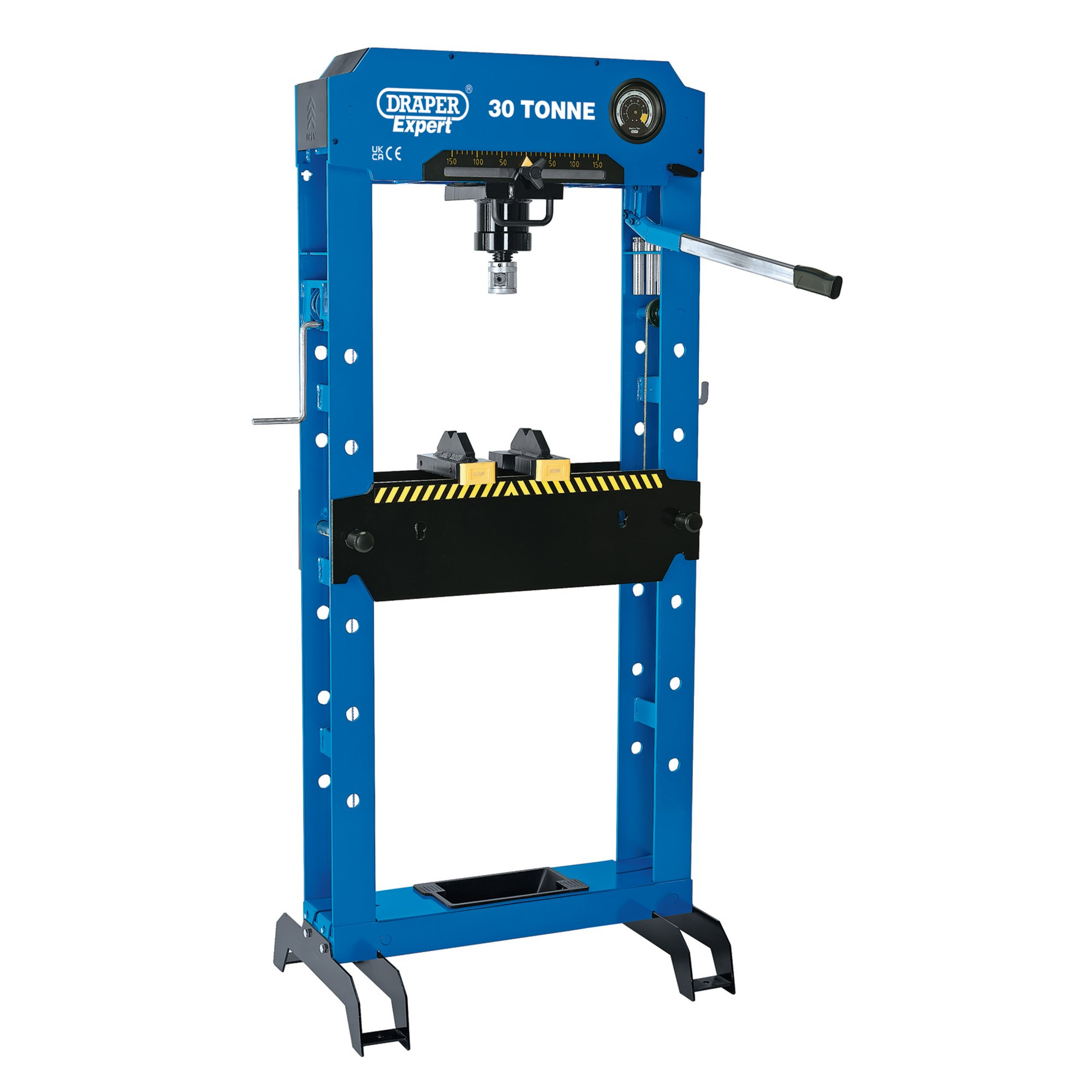

Robust hydraulic 30 tonne floor press with sliding ram for precise pressing.
Fitted with hand pump for manual hydraulic operation.
There are 12 adjustable table heights with a working range between 25-850mm.
The table can be lifted or lowered using a winch.
Robot welding one-piece frame for increased stability.
There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life.
There is a removable parts tray located in the frame base.
Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
1 x Draper Expert Hydraulic Floor Press, 30 Tonne- Features
Features
Capacity: 30 Tonne Gauge diameter: 100mm Ram stroke: 220mm Ram scale: 145mm - 0mm - 145mm Ram diameter: 50mm Table height: 25-850mm Press pin capacity: 2-15 Tonnes Overall height: 1800mm Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm Weight (net): 157kg - Shipping
This product is large and/or heavy and as such, some destinations may incur an additional shipping surcharge. If this is the case you will be contacted before despatch to discuss this.
