- Description
-
Details

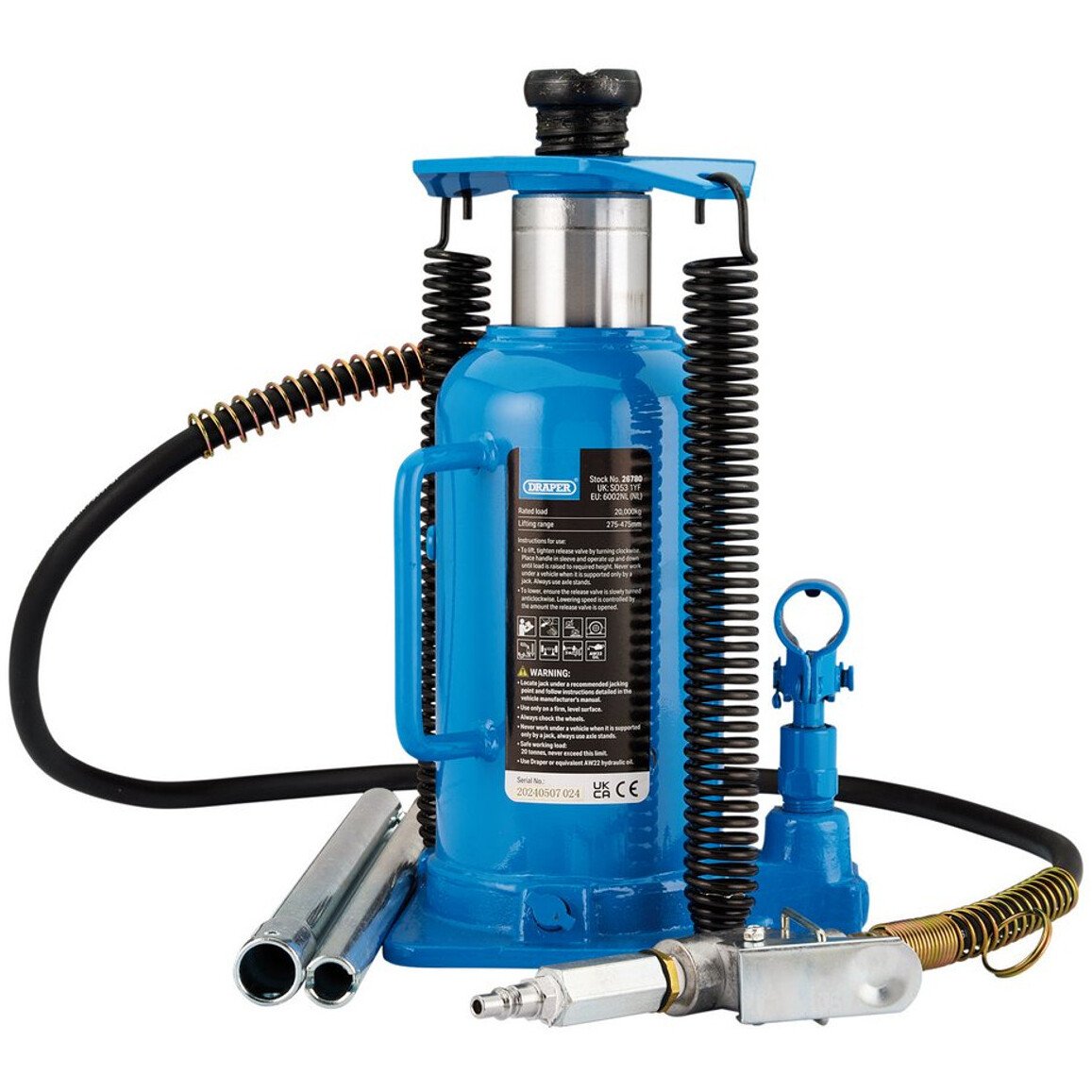

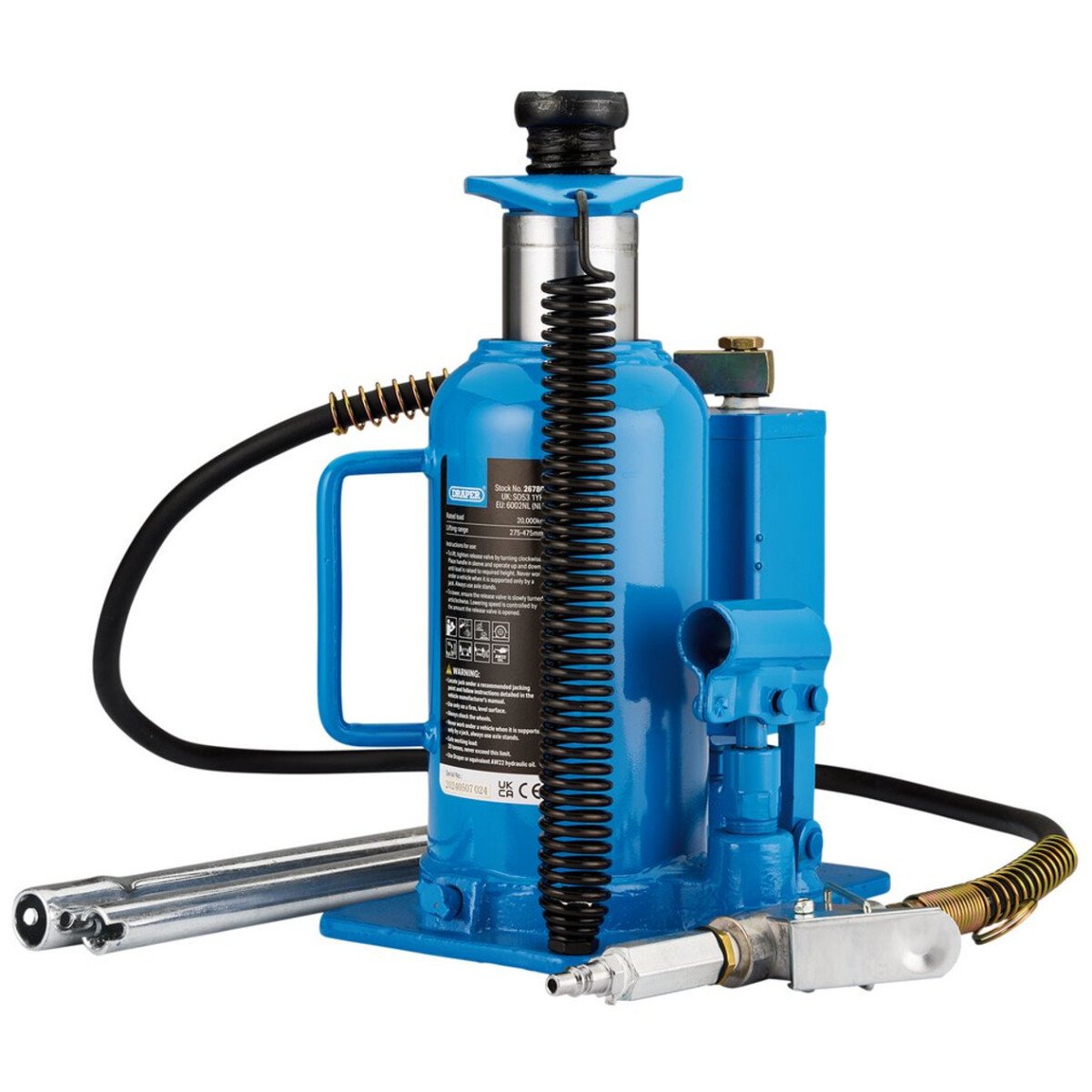

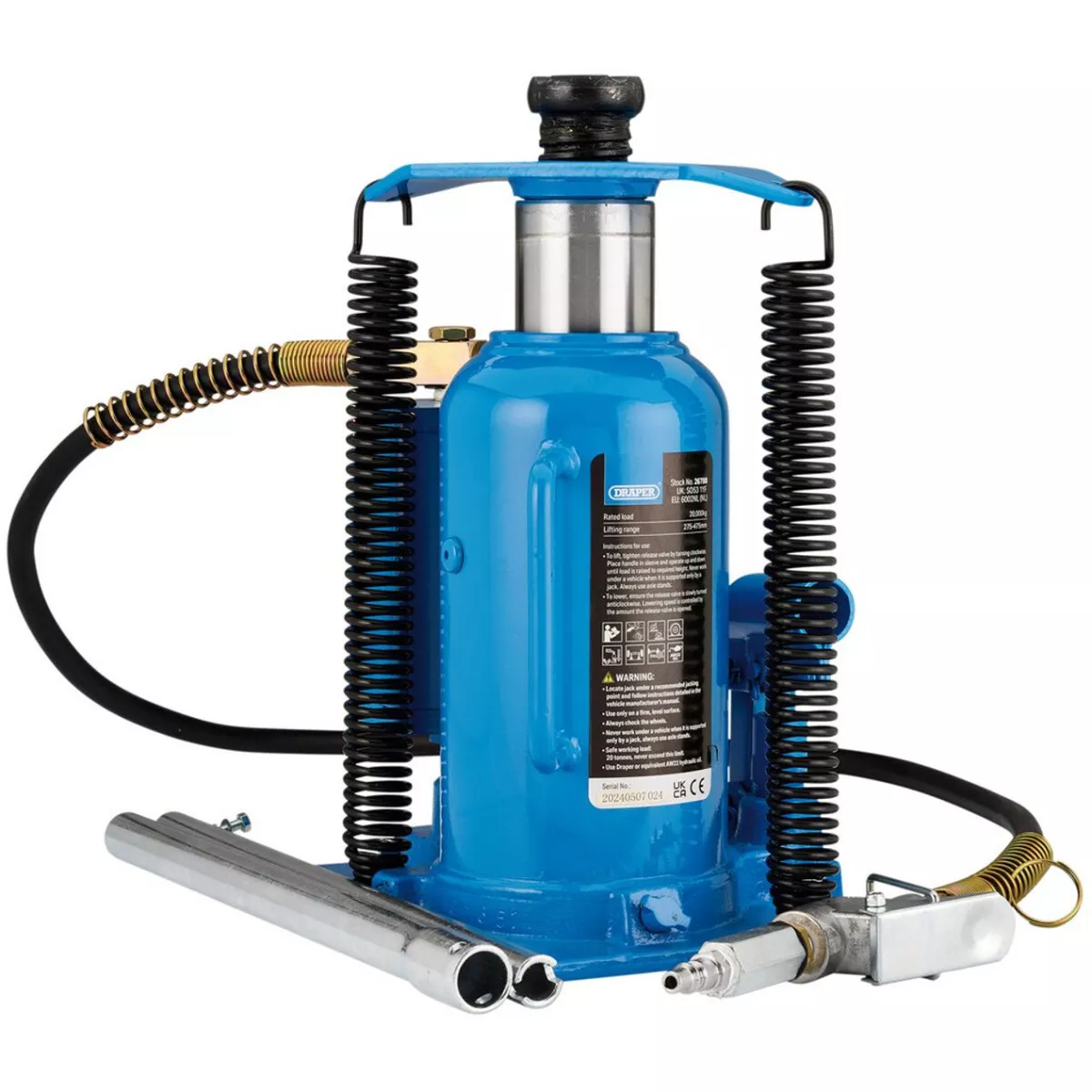

- This air bottle jack can effortlessly handle heavy loads up to 20 tonnes
- It has a minimum height of 245mm and a maximum height of 474mm, making it versatile and suitable for various lifting needs
- The extendable screw reaches up to 80mm, allowing for precise adjustments
- You can connect the air compressor for pneumatic lifting and control it by using the air valve, which makes heavy lifting effortless and improves work efficiency
- The bottle jack can also be operated hydraulically by hand using the two-piece handle for extra versatility
- It is built with a robust welded base and reservoir to improve strength and minimise leaks
- Additionally, there is a built-in safety valve to prevent overloading
- The jack also features an integrated carry handle for easy transportation and storage
- Features
Features
Capacity: 20 Tonne Lifting range: 245-475mm Screw extension: 80mm Operating air pressure: 0.7-1mpa Saddle diameter: 45mm Air coupler: 1/4" BSP Hydraulic lift: 150mm Ram diameter: 72mm Jack handle length: 650mm Base size: 220 x 175mm Weight: 16kg
