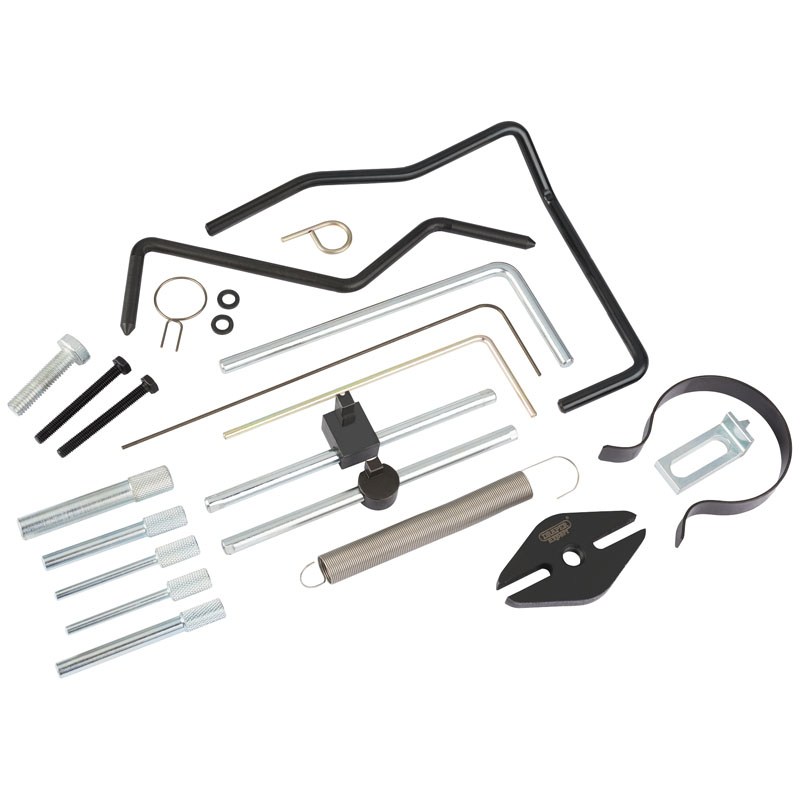

Draper 18191 ETK203 Engine Timing Kit (Citroen, Peugeot)

Made in the UK

Used on the following Vehicles:
Citroen Dispatch 1999 - 2007
Citroen C3 2002 - 2010
Citroen C4 2006 - 2012
Citroen C5 2000 - 2008
Citroen Xsara 1999 - 2000
Peugeot 107 2005 - 2010
Peugeot 1007 2005 - 2010
Peugeot 206 1999- 2011
Peugeot 207 2006 - 2010
Peugeot 306 1999 - 2002
Peugeot 307 2001 - 2009
Peugeot 308 2007 - 2011
Peugeot 3008 2009 - 2011
Peugeot 406 1999 - 2006
Peugeot 407 2004 - 2011
Peugeot 508 2011 - 2015
Peugeot 5008 2009 - 2010
Peugeot 607 2000 - 2011
Peugeot 807 2002 - 2010
Peugeot Boxer 2001 - 2006
Peugeot Expert III 2004 - 2012
Peugeot Partner 1999 - 2012
Engine Codes:
1.4cc
DV4TD (8HX), DV4TD (8HZ), DV4TD (8HT), 8HW (DV4TD), 8HV (DV4TED4), 8HY (DV4TED4)
1.6cc
DV6TED4 (9HZ ), DV6TED4 (9HZ), DV6TED4 (9HY), DV6ATED4 (9HX), DV6BTED4 (9HW), DV6TED4 (9HW)
2.0cc
DW10TD (RHY), DW10UTD (RHV), DW10UTED4 (RHK), RHZ (DW10ATED/L3), DW10ATED (RHS), RHS (DW10ATED), DW10ATED4 (RHM), DW10ATED4 (RHW), DW10ATED4/L4 (RHT), DW10BTED4 (RHR), RHX (DW10BTED/L3), RHJ (DW10BTED4), RHL (DW10BTED4)
2.2cc
DW12ATED (4HX), DW12ATED (4HZ), DW12TED4/L4 (4HW), DW12UTED (4HY), DW12BTED4 (4HP), DW12BTED4 (4HT), DW12BTED4 (4HR), DW12BTED4 (4HS)
Contents:
Crankshaft pin - OEM 0188-Y
Timing belt retaining clip - OEM 0188-K
Puller beam - OEM 188-P
M10 x 40 high tensile set screw
Hex-head bolt
Washer
Timing pin - OEM 0188-X
Centraliser spring - OEM 0188-AH
Flywheel lock - OEM 0188-F
Tension adjusting tool - OEM 0188-J2
Locking pin - OEM 0188-M
2mm formed locking pin - OEM 0188-Q2
3mm formed locking pin - OEM 0153-AL
Setting pin - OEM 0188-Q1
Tension adjusting tool - OEM 0178-E
Locking pin
Setting pin
Flywheel locking pin - OEM 0194-C
Multi-bend flywheel timing pin - OEM 0.532Y
Retention spring
