Draper 16235 *TC100/WB100 Tyre Changer and Wheel Balancer Kit

More Views

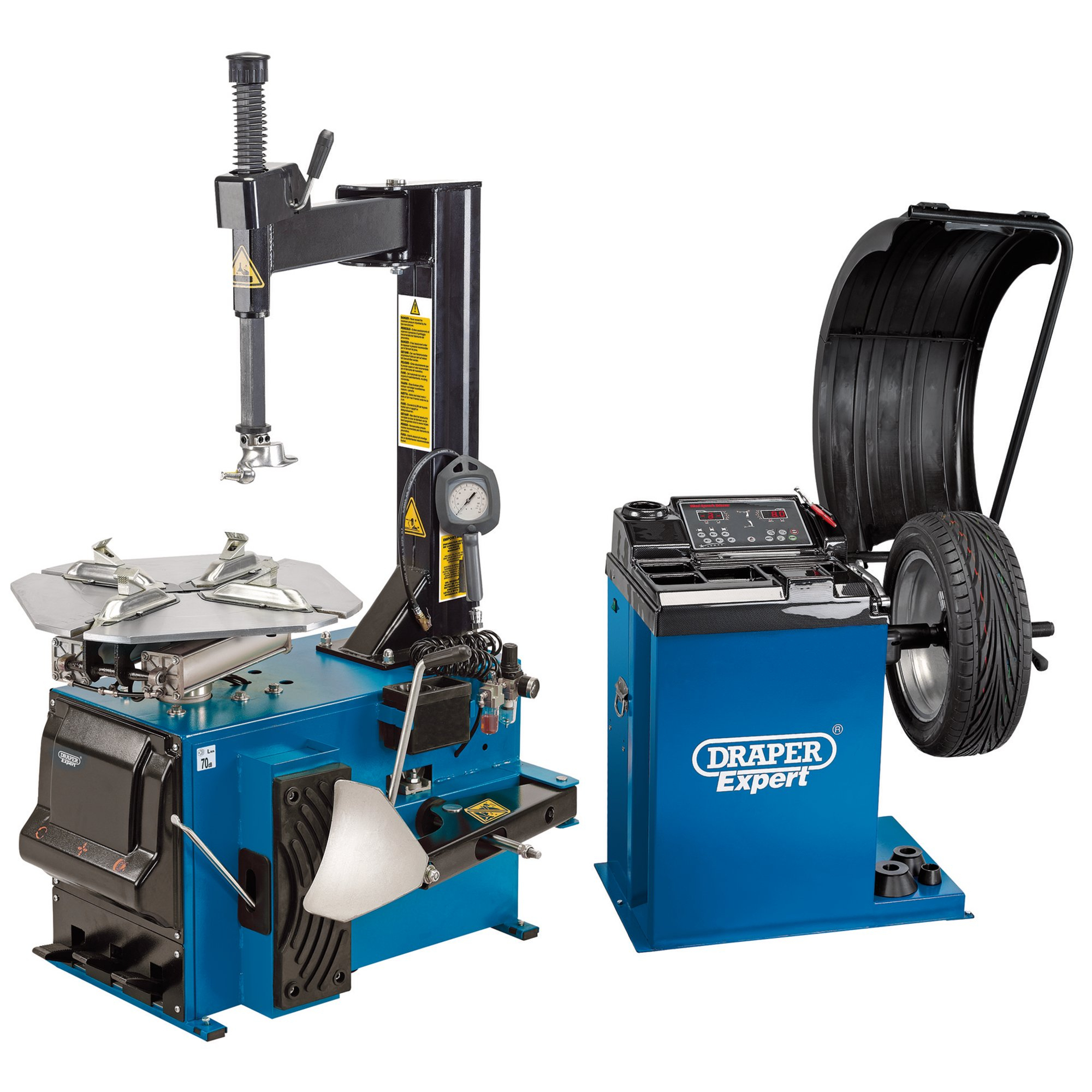

Draper 16235 *TC100/WB100 Tyre Changer and Wheel Balancer Kit
Ex. VAT £2,178.39 Inc. VAT £2,614.07

Usually ships within 3 working days with Free Shipping

Description

Details

Made in the UK

A comprehensive wheel servicing kit.
Consisting of a semi-automatic tyre changer and wheel balancer.


The tyre changer is capable of removing and replacing tyres on wheels up to 23”.
Powered by a fully motorised turntable and fitted with pneumatically operated clamping jaws and bead breaker enabling the changing of conventional tyres quickly and easily.
The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims.
Each machine is attached with a self-centring four-jaw chuck guaranteeing that wheel rims are correctly clamped.
Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors.


The semi-automatic wheel balancer is supplied with a calibration weight for easy setup and able to balance wheels up to 65kg and 24” in diameter all with an accuracy of 1 gram.
Suitable for passenger and LGV wheel/tyre combinations.
Both machines are fitted with a standard 13 amp plugs for easy installation and assembly and supplied with the following accessories: 4 x centering cones, centering shaft, wheel weight pliers, hub nut and rim width calipers, tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.
Features

Features

Wheel Balancer Specifications:
Balance speed ... 200RPM
Power supply ... 230V
Balance accuracy ... 1 Gram
Cycle Time ... 8-10 seconds
Max tyre diameter ... 43"
Max tyre width ... 35"
Rim capacity ... 10" - 20"
Rim width capacity ... 1.5" - 20"
Max weight capacity ... 65kg
Dimensions (guard open) ... 13208mm x 1016mm x 1651mm
Dimensions (guard closed) ... 13208mm x 965mm x 1270mm
Tyre Changer Specifications:
Motor0.75KW
Power supply230V
Bead breaker force2100kg
Pneumatic supply90-115psi (6-8BAR)
Suitable for use on wheel width3" to 14"
For rim dia. (internal locking)13" to 23"
For rim dia. (external locking)11" to 21"
Max tyre outside diameter40" (1000mm)
Dimensions1740mm x 950mm x 760mm
Weight180kg
Shipping

This product is large and/or heavy and as such, some destinations may incur an additional shipping surcharge. If this is the case you will be contacted before despatch to discuss this.
