- Description
-
Details

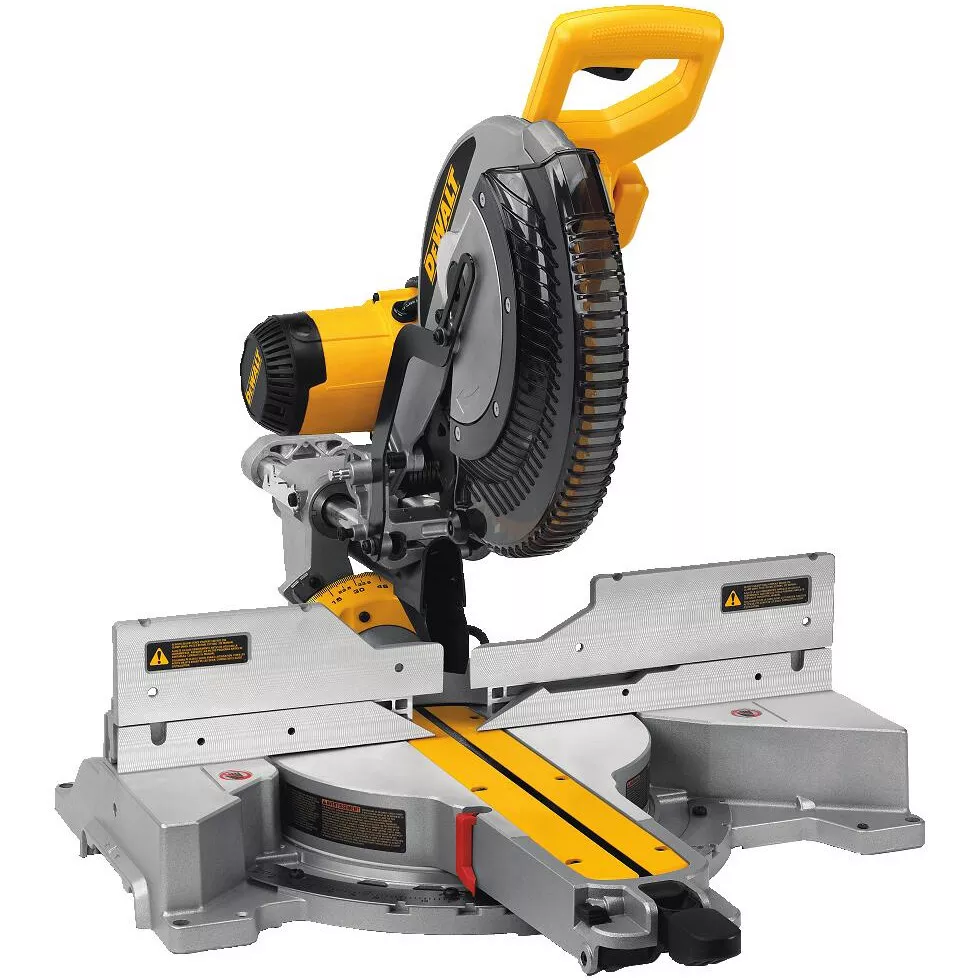

DeWalt DWS780 305mm Compound Slide Mitre Saw with XPS (Replaces DW718XPS)
- The DWS780 mitre saw is the evolution of the highly popular DW718XPS and features increased capacity, a brighter XPS system, increased portability and better dust extraction
- With massive cutting capability this Dewalt Mitre Saw performs in both small profiles and large construction timbers up to 110 x 303 mm
- The XPS Shadow line cut indicator provides accurate and fast alignment of the blade while lighting the job in hand for faster workrate no adjustment required
- Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life fo the tool
- New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
- Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
- Mitre lock system allows the user faster and easier to adjust angles between 0-50° left and 0-60 degrees to the left
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
- Linear horizontal rails with bronze to provide maximum precision when cutting materials with width up to 345 mm to be cut
- Compact and lightweight design characteristics deliver a saw, it is easy to move around the workplace
- Very good dust control
- Electronic speed control for adjusting cutting speed when using the non-ferrous materials (material clamps should be used for cutting non-ferrous materials)
Supplied With:
- High Quality 60 tooth blade. Blade spanner. Dust bag. Material Clamp.
- Features
Features
Power Input: 1675 Watts Power Output: 960 Watts Blade Speed: 1900 - 3800 rpm Blade Diameter: 305mm Blade Bore: 30mm Bevel Capacity: 49/49° Mitre Capacity right: 60° Mitre Capacity left: 50° Cutting Capacity at 90°/90°: 303 x 110 mm Cutting Capacity at 90°/90°: 345 x 76 mm Cutting Capacity at 45°/90°: 268 x 63 mm Cutting Capacity at 45°/90°: 345 x 44 mm Cutting Capacity at 90°/45°: 211 x 112 mm Cutting Capacity at 90°/45°: 244 x 76 mm Max Capacity 45°/45°: 212 x 76 mm Depth: 470mm Length: 770mm Height: 396mm Total Shipping Weight: 40kg - Shipping
This product is large and/or heavy and as such, some destinations may incur an additional shipping surcharge. If this is the case you will be contacted before despatch to discuss this.
