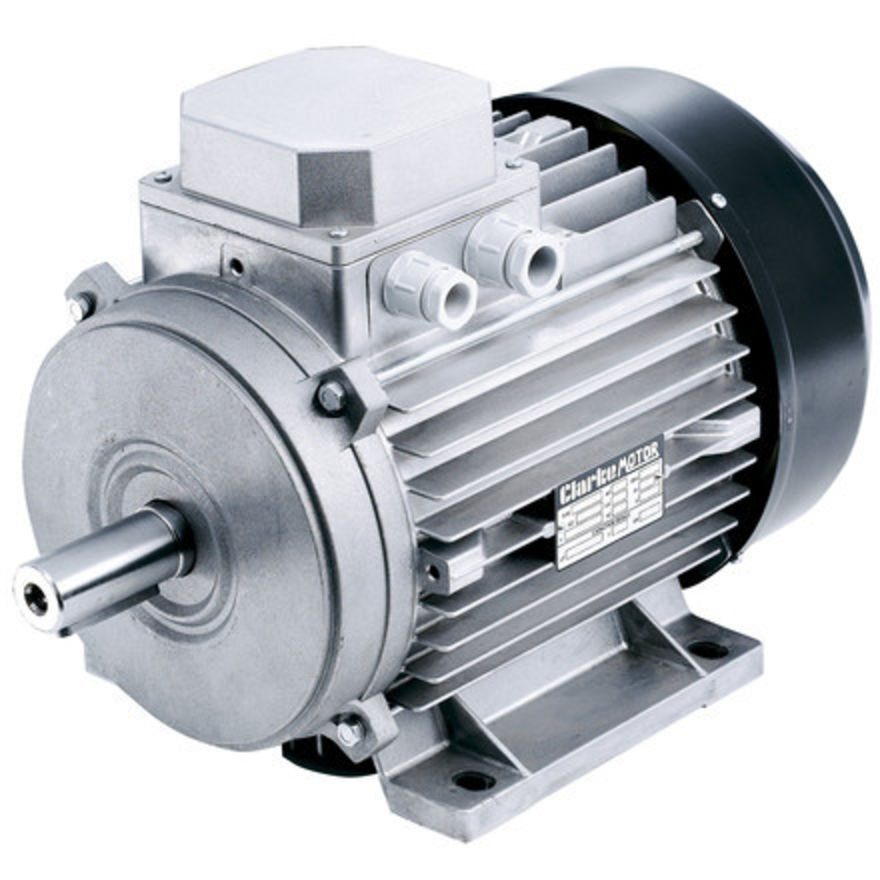

Clarke 6430435 2HP Single Phase 2-Pole Motor (230V)

Name: Clarke 6430435 2HP Single Phase 2-Pole Motor (230V)
Brand: Clarke
SKU: C-6430435
Price: 123.59 GBP
Availability: InStock

Ex. VAT £102.99 Inc. VAT £123.59

Usually ships within 5 working days with Free Shipping

Suited to a variety of applications, this totally enclosed fan cooled 230V motor provides reliable long term service

Qty:

Description

Details

Size 2 HP
No. of Poles 2
Shaft Speed 3000 rpm
Frame Size 80
Shaft Dia. 19 mm
Starter Required Amps 10-16
Suited to a variety of applications, this totally enclosed fan cooled 230V motor provides reliable long term service
To see our handy frame sizing guide, please view the manual

Features

2HP, 230V 1 phase motor
2-pole (3000rpm) no load shaft speed, 19mm key way drive shaft
Double-shielded self-lubricating radial ball bearings on drive
Starter windings have class F insulations & are class H resin coated
Manufactured to the latest electrical & mechanical standards inc. IEC34-1, BS5000, CEN HD231 & IEC72
Motor must be wired through a suitable starter (10 - 16 Amps) with overload protection
